C1-C4510RE-S8+96V+ Technical Specifications

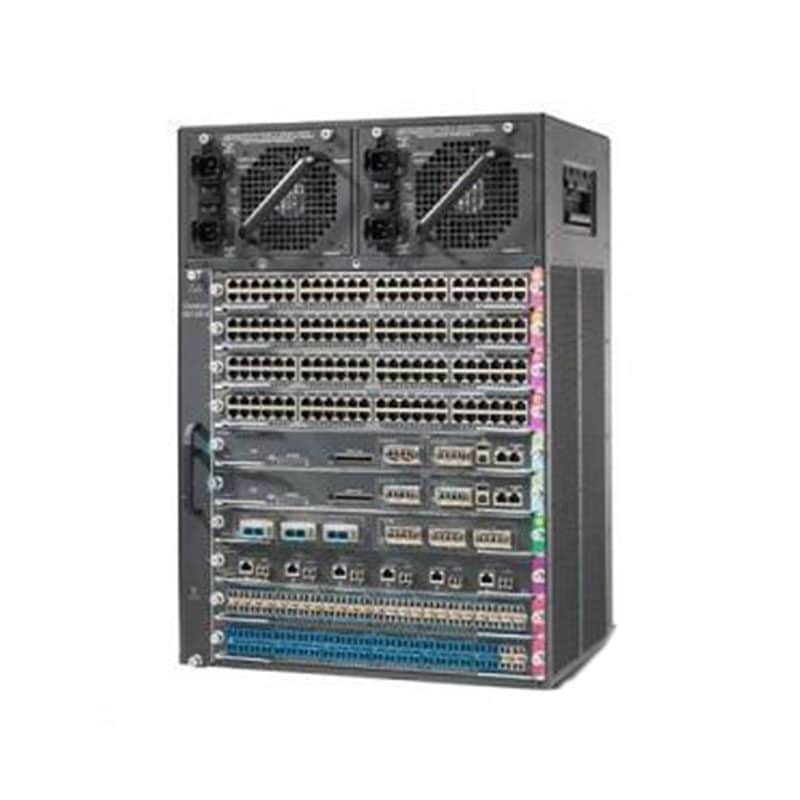

Cisco ONE Catalyst 4510R+E Switch 96 Port Managed Rack Mountable
Product Line Cisco ONE Catalyst
Product Series C4510R
Cisco ONE Catalyst 4510R+E – switch – 96 ports – managed – rack-mountable – with Cisco Catalyst 4500E Supervisor Engine 8-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Device Type
Switch – 96 ports – managed – with Cisco Catalyst 4500E Supervisor Engine 8-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Enclosure Type
Rack-mountable 14U
Subtype
Gigabit Ethernet
Ports
96 x 10/100/1000
8 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
IPv4 routing: 250 Mpps ¦ IPv6 routing: 125 Mpps ¦ Switching capacity: 928 Gbps ¦ Per-slot switching capacity: 48 Gbps
Capacity
IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ QoS hardware entries: 128000 ¦ Active VLANs: 4096 ¦ Spanning Tree Protocol instances: 10000 ¦ Switched virtual interfaces (SVIs): 4094
