BX8070110700F Technical Specifications

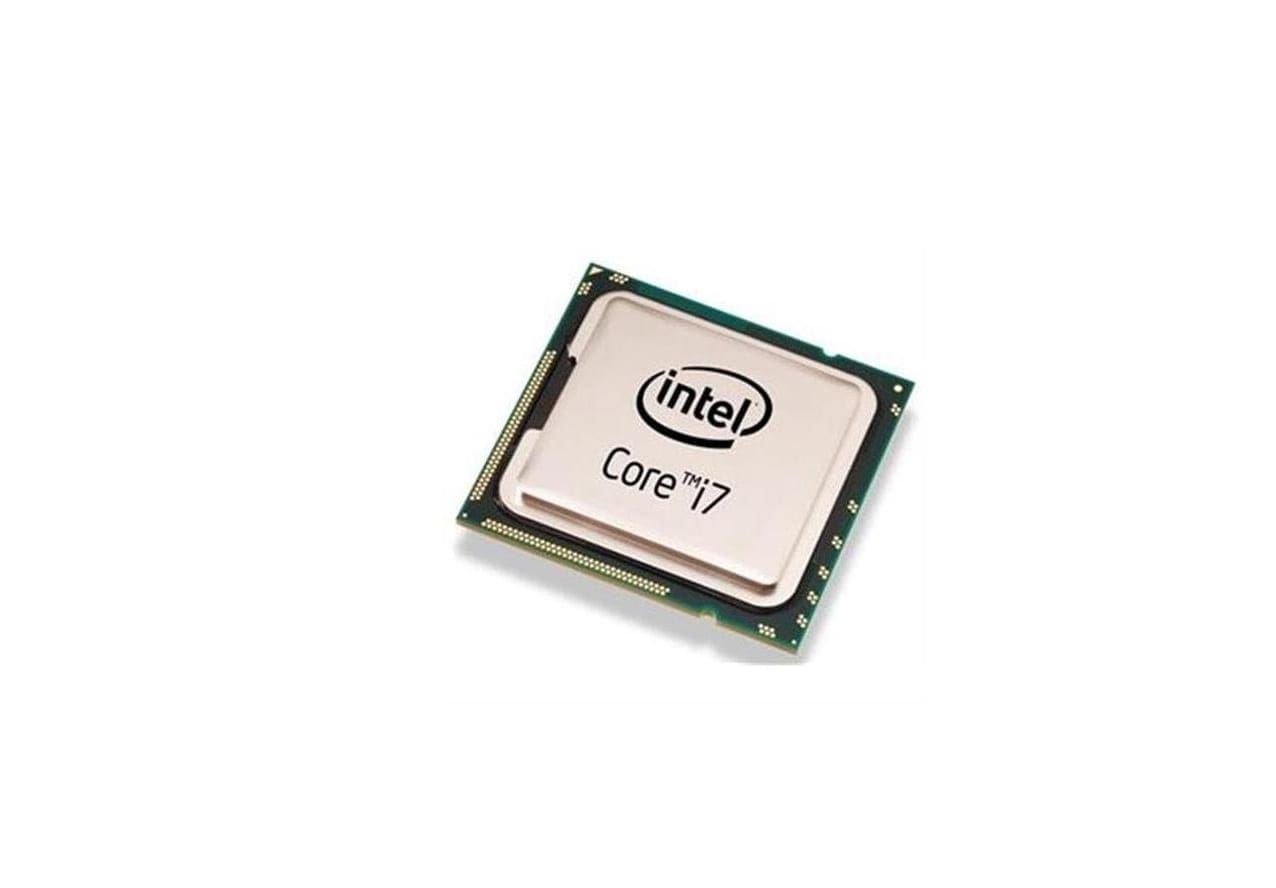

Intel Core i7-10700F 8-Core 2.90GHz 8.00GT/s 16MB L3 Cache Socket FCLGA1200 Desktop Processor
Brand Intel
Part No. BX8070110700F
Processor Type Desktop
Series Core i7 Desktop Processor
Core Model Type/ProcNo. i7-10700F
Processor Code Name Comet Lake
Manufacturing Technology 14 nm
# of Cores 8
# of Threads 16
Clock Speed 2.90 GHz
Max Turbo Frequency 4.80 GHz
L3 Cache Size 16 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s
Intel Turbo Boost Max Technology 3.0 Frequency 4.80
Thermal Power 65 Watts
Max Memory Size 128 GB
Memory Types DDR4-2933
Memory Channels 2
Maximum Memory Bandwidth 45.8 GB/s
ECC Memory Supported No
Max CPU Configuration 1
TJUNCTION 100 °C
Package Size 37.5mm x 37.5mm
Embedded Options Available No
Scalability 1S
PCI Express 3.0
PCI Express Configurations 1 x16
1×8+2×4
2 x8
Max # of PCI Express Lanes 16
Advanced Technologies Enhanced Intel SpeedStep Technology
Idle States
Instruction Set 64-bit
Intel 64
Intel Hyper-Threading Technology
Intel Identity Protection Technology
Intel Optane Memory Supported
Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel VT-x with Extended Page Tables (EPT)
Thermal Monitoring Technologies
