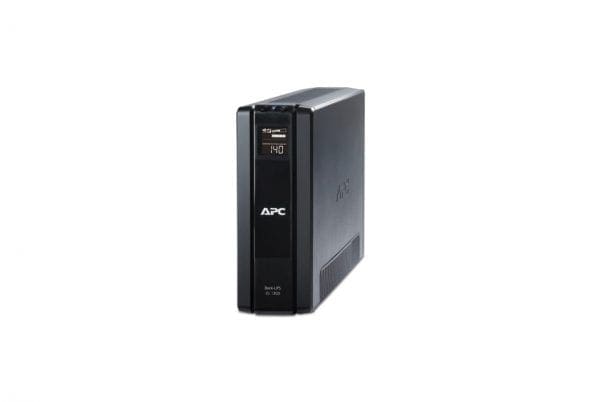

BX1300G Technical Specifications
Power Saving Back-UPS XS 1300
Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro
Packaged Quantity :1
Output
Max Configurable Power (Watts)
780Watts / 1300VA
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
8ms typical : 12ms maximum
Bypass
Built-in Bypass
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules 1
Typical recharge time
16hour(s)
Replacement Battery
APCRBC123
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Charge Power (Watts)
9Watts
Battery Volt-Amp-Hour Capacity 138
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
354Joules
Data Line Protection
RJ-45 Modem/Fax protection (two wire single line), RJ45 10/100 Base-T Ethernet protection, Cable modem / Video protection
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
11.85inches (301MM, 30.1CM)
Maximum Width
4.41inches (112MM, 11.2CM)
Maximum Depth
15.04inches (382MM, 38.2CM)
Net Weight
23.1lbs. (10.5KG)
Shipping weight
28.27lbs. (12.85KG)
Shipping Height
15.24inches (387MM, 38.7CM)
Shipping Width
9.37inches (238MM, 23.8CM)
Shipping Depth
19.21inches (488MM, 48.8CM)
Color Black
Master Carton Units 1.0
Units per Pallet 16.0
SCC Codes
1073130426838 0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-30000ft (0-9000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Conformance
Approvals
California (CEC) Battery Charger, TUV, UL Listed
Equipment protection policy
Standard warranty
3 years repair or replace
Sustainable Offer Status
RoHS Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Proposition 65 Warning
Available in Documentation tab
