BRSLX954048SACF Technical Specifications

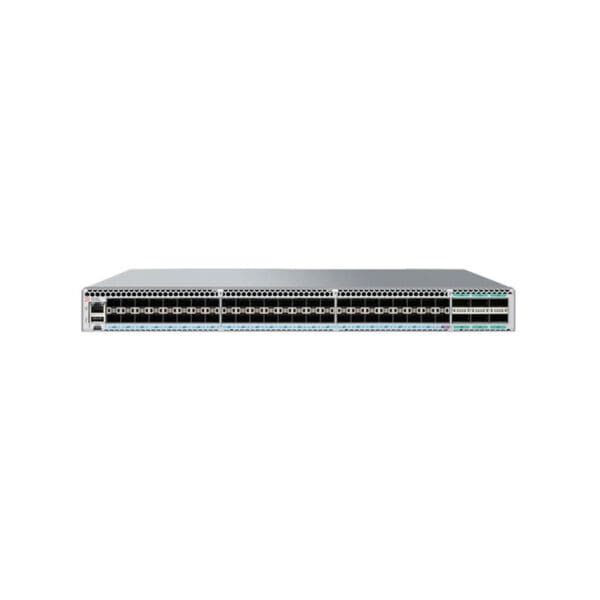

Brocade SLX 9540-48S-AC-F Switch 48 ports Managed Rack-mountable
Device Type: Switch – 48 ports – managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 100 Gigabit QSFP28
Performance: Switching capacity: 1.08 Tbps | Forwarding performance: 720 Mpps
Jumbo Frame Support: 9216 bytes
Power
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided; 650 Watt
Dimensions & Weight
Width: 17.3 in
Depth: 17.5 in
Height: 1.7 in
Weight: 19.84 lbs
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 90% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 131 °F
Humidity Range Storage: 95% (non-condensing)
