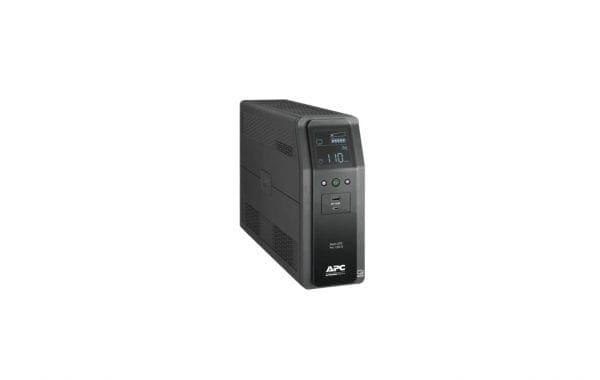

BR1350MS Back UPS PRO BR 1350VA, SineWave, 10 Outlets, 2 USB

BR1350MS Overview

Back UPS PRO BR 1350VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
High Performance Computer and Electronics UPS for Premium Power Protection
Includes: coaxial cable, USB cable, User Manual

$242

Buy Now
Availability: In Stock
SKU:BR1350MS
Brand:

BR1350MS Technical Specifications

Back UPS PRO BR 1350VA, SineWave, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro
Model :BR
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Serial
Interface Provided
Interfaces :1 x management (RS-232/USB)
Cable Details
Cables Included :Power cable 6 ft, Coaxial RF cable – external, USB cable – external
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :810 watt
Power Capacity (VA) :1350 volt ampere per kilogram 1350VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 147 V
Frequency Required :60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :8 millisecond
Surge Energy Rating :1080 joules
Circuit Protection :Circuit breaker
Efficiency :98.3% at 25% Load, 99.1% at 75% Load, 99.1% at 100% Load, 99% at 50% Load
Power Device Features :Automatic self-test, Hot-swappable batteries, LCD display, Automatic Voltage Regulation (AVR), Audible alarm, Cold-start function
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15 (UPS and surge), 4 x power NEMA 5-15 (surge), 1 x 24 pin USB-C, 1 x 4 pin USB Type A
Dataline Surge Protection
Dataline Surge Protection :Network – RJ-45 – 1 input line / 1 output line, Coaxial – 1 input line / 1 output line
Battery
Run Time (Up To) :3.3 minute (time unit)
Load Type :At full load
Recharge Time :16 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :4.6 min at 700 Watts, 6.1 min at 600 Watts, 27.3 min at 200 Watts, 3.3 min at full load, 8.3 min at 500 Watts, 11.6 min at 400 Watts, 3.4 min at 800 Watts, 54.5 min at 100 Watts, 95 min at 50 Watts, 11.4 min at half load, 17 min at 300 Watts
UPS
Battery Technology :Lead acid
Miscellaneous
Color Category :Black
Equipment Protection Value :500000 US Dollars
Compliant Standards :NOM, FCC Part 15 C Class B, RoHS, TUV C
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.9 inch
Depth :14.5 inch
Height :10.2 inch
Weight :25.79 lbs
Dimensions & Weight (Shipping)
Shipping Width :8.8 inch
Shipping Depth :19 inch
Shipping Height :14.1 inch
Shipping Weight :29.32 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :45 dBA
