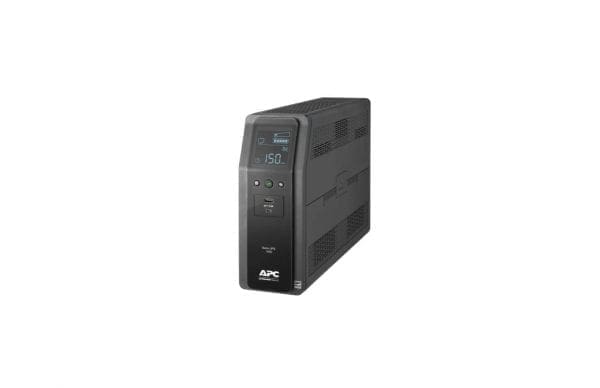

BN1500M2 Technical Specifications
Back UPS PRO BN 1500VA, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface
Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro
Packaged Quantity :1
Output
Max Configurable Power (Watts)
900Watts / 1500VA
Output Frequency (sync to mains)
60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
8ms typical : 10 ms maximum
Input
Input frequency
60 Hz +/- 3 Hz
Input voltage range for main operations
88 – 139V
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules 1
Typical recharge time
16hour(s)
Replacement Battery
APCRBC161
Expected Battery Life (years) 3 – 5
RBC Quantity 2
Battery Volt-Amp-Hour Capacity 180
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
1080Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection, Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
10.24inches (260MM, 26.0CM)
Maximum Width
3.94inches (100MM, 10.0CM)
Maximum Depth
14.49inches (368MM, 36.8CM)
Net Weight
25.13lbs. (11.4KG)
Shipping weight
30.86lbs. (14.0KG)
Shipping Height
14.96inches (380MM, 38.0CM)
Shipping Width
9.49inches (241MM, 24.1CM)
Shipping Depth
19.69inches (500MM, 50.0CM)
Color Black
Master Carton Units 1.0
Master Carton Weight
30.86lbs. (14.0)
Units per Pallet 16.0
SCC Codes
1073130433537 2
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-10000ft (0-3000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
