BK500BLK Technical Specifications

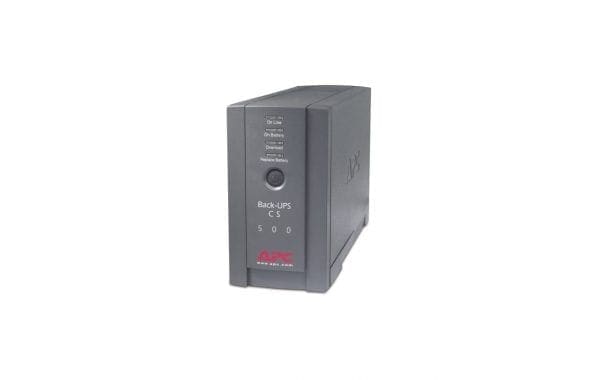

APC Back-UPS CS 500VA UPS (black)
Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS CS
Model :500
Country Kits :Ecuador, Mexico, Costa Rica, Peru, Canada, Guatemala, Paraguay, Dominican Republic, Chile, Venezuela, Barbados, Puerto Rico, Antigua and Barbuda, Falkland Isles, Salvador, Belize, Nicaragua, Anguilla, Virgin Islands, Jamaica, Brazil, United States, Argentina, Panama, Aruba, Netherlands Antilles, Bolivia, Colombia, Uruguay, Honduras, Guyana, Cuba
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Interface Provided
Interfaces :1 x USB – 4 pin USB Type B, 1 x modem – RJ-11
Cable Details
Cables Included :Power cable 6 ft, USB cable – external
Software
Type :APC PowerChute USB Bundle
Power Device
Form Factor :External
Voltage Provided :AC 120 volt
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :300 watt
Power Capacity (VA) :500 volt ampere per kilogram 500VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 98 – 140 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Surge Response Time :0 millisecond
Surge Energy Rating :480 joules
Power Output Connectors Details
Power Output Connectors Details :3 x power NEMA 5-15 (surge), 3 x power NEMA 5-15
Battery
Run Time (Up To) :5.7 minute (time unit)
Load Type :At full load
Recharge Time :8 Hours
Run Time Details
Run Time (Up To) :5.7 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :25000 US Dollars
Compliant Standards :FCC Class B certified
Features :Audible alarm
Dimensions & Weight
Width :3.6 inch
Depth :11.2 inch
Height :6.5 inch
Weight :13.89 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
