BK500 Technical Specifications

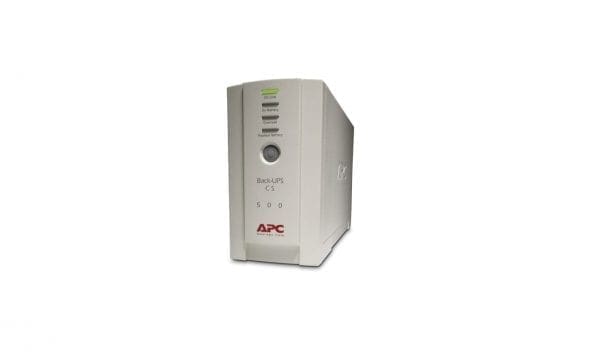

APC Back-UPS CS 500VA
Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS CS
Model :500
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Interface Provided
Interfaces :1 x management, 1 x management (USB)
Cable Details
Cables Included :Power cable 6 ft, USB cable – external
Power Device
Form Factor :External
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :300 watt
Power Capacity (VA) :500 volt ampere per kilogram 500VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 98 – 140 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15R
Output Connector Qty :6
Surge Suppression :Yes
Power Device Features :Audible alarm
Power Output Connectors Details
Power Output Connectors Details :3 x power NEMA 5-15R (surge), 3 x power NEMA 5-15R (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection :Phone line – RJ-11
Battery
Recharge Time :8 Hours
Lead Acid Battery Features :Maintenance free, Leak-proof
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Beige
Color Category :Beige
Equipment Protection Value :100000 US Dollars
Compliant Standards :UL 1778, IC, FCC Part 15 B, cUL
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.6 inch
Depth :11.2 inch
Height :6.5 inch
Weight :13.82 lbs
Dimensions & Weight (Shipping)
Shipping Width :6.9 inch
Shipping Depth :14.1 inch
Shipping Height :10.4 inch
Shipping Weight :15.32 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
