BE6M-M4-XU Technical Specifications

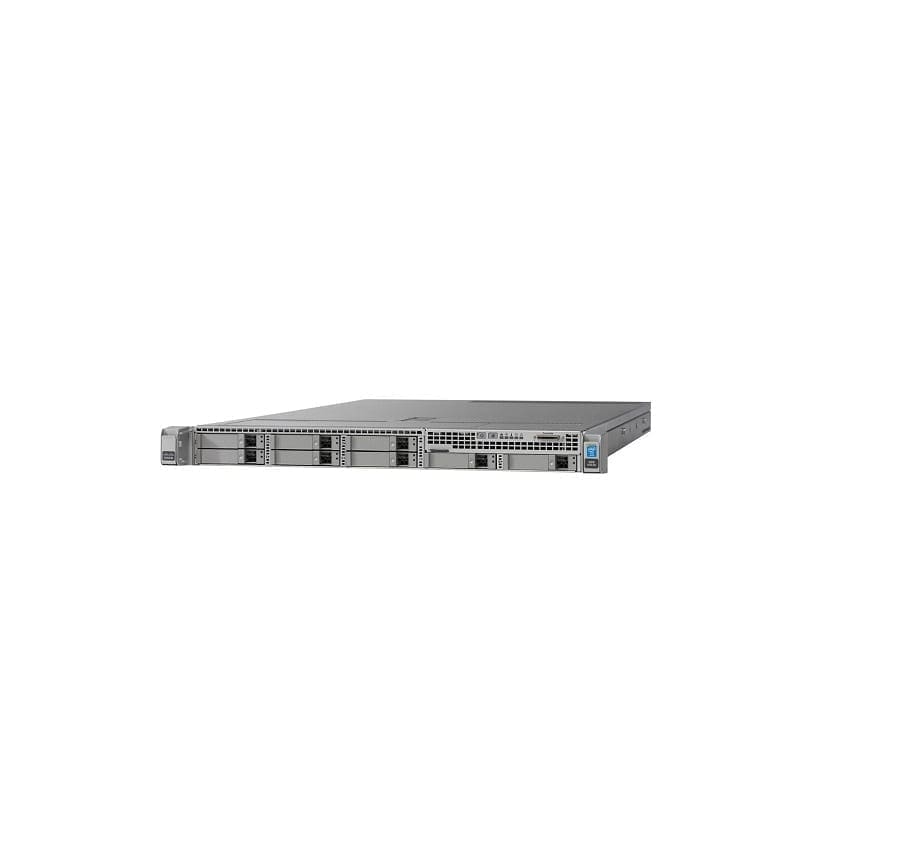

Cisco Business Edition 6000M rack-mountable
Cache Memory
Installed Size :20 MB
Per Processor Size :20 MB
Type :L3 cache
Chassis
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8 Bays
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :29.8 in
Height :1.7 in
Width :16.9 in
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Size :Half-length, low-profile
Size :Three-quarter-length, full-height
Slot Comments :X16 mode
Type :PCIe 3.0 x24
Type :CPU
Type :DIMM 288-pin
Type :SD card (internal)
Hard Drive
Installed Qty :6 Bays
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :10000 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Mainboard
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :770 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
