B11B249201 Technical Specifications

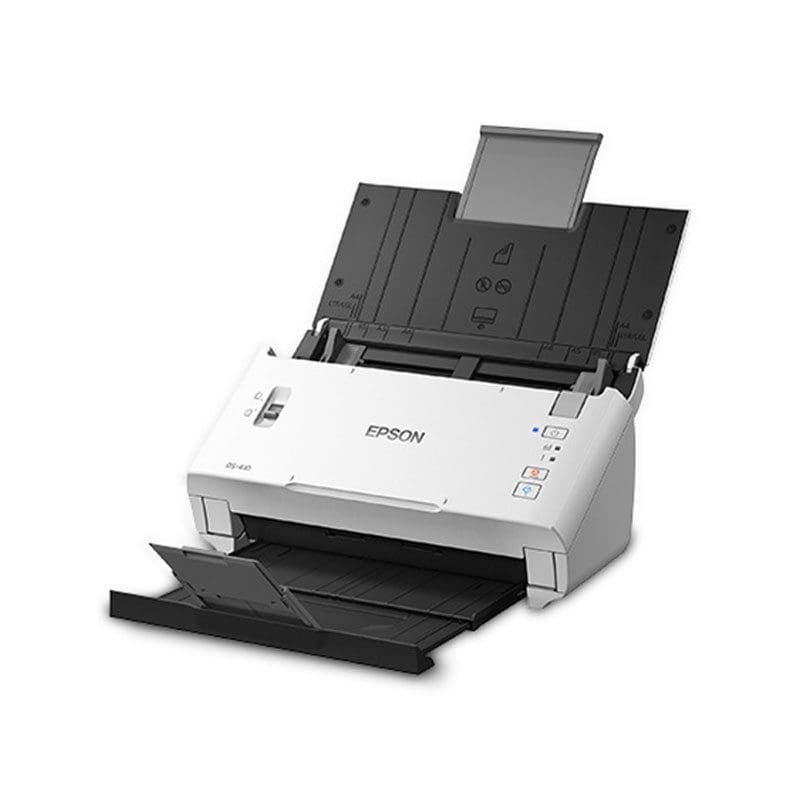

Epson WorkForce DS-410 Document Scanner
Header
Manufacturer :Epson
Brand :Epson
Product Line :Epson WorkForce
Model :DS-410
Packaged Quantity :1
Scanner
Type :Document scanner
Form Factor :Desktop
Automatic Duplexing :Yes
Interface Type :USB 2.0
Input Type :Color
Document Size Class :Letter
Max Supported Document Size :8.5 in x 120 in
Max H-Document Size :8.5 in
Max V-Document Size :120 in
Grayscale Depth :16-bit (64K gray levels)
Grayscale Depth (External) :8-bit (256 gray levels)
Color Depth :48-bit color
Color Depth (External) :24-bit (16.7 million colors)
Max H-Optical Resolution :600 dpi
Max V-Optical Resolution :600 dpi
Max H-Interpolated Resolution :1200 dpi
Max V-Interpolated Resolution :1200 dpi
Scan Mode :Single-pass
Scan Element Type :Contact Image Sensor (CIS)
Lamp / Light Source Type :3-color RGB LED
Max Document Scan Speed B/W :26 parts per million
Max Document Scan Speed Color :26 parts per million
Supported Document Type :Plastic card, Business card, Plain paper
Document Feeder Type :Automatic
Feeder Capacity :50 Sheets
Duty Cycle :3000 scans per day
Compliant Standards :TWAIN, ISIS
Scanner Speed Details
Scanner Speed Details :26 ppm – black&white – Letter – 300 dpi, 52 ipm – duplex – color – Letter – 300 dpi, 26 ppm – color – Letter – 300 dpi, 52 ipm – duplex – black&white – Letter – 300 dpi
Interfaces
Interfaces :USB 2.0 – Type B
Cable Details
Cables Included :1 x USB cable
Software
Software Included :NewSoft Presto! BizCard OCR, EMC Captiva ISIS, EPSON Scan 2, EPSON Document Capture Pro, ABBYY FineReader OCR
Power Device
Type :External power adapter
Nominal Voltage :AC 120/230 V
Frequency Required :50 – 60 hertz
Power Consumption Operational :15 watt
Power Consumption Stand by :4.1 watt
Power Consumption Sleep :0.6 watt
Battery
Form Factor :None
System Requirements
OS Required :Apple MacOS X 10.6.x – Apple macOS 10.12.x, Windows 8.1, Windows 10, Windows 8, Microsoft Windows 7
