B-EX4600-40FO-3S-E Technical Specifications

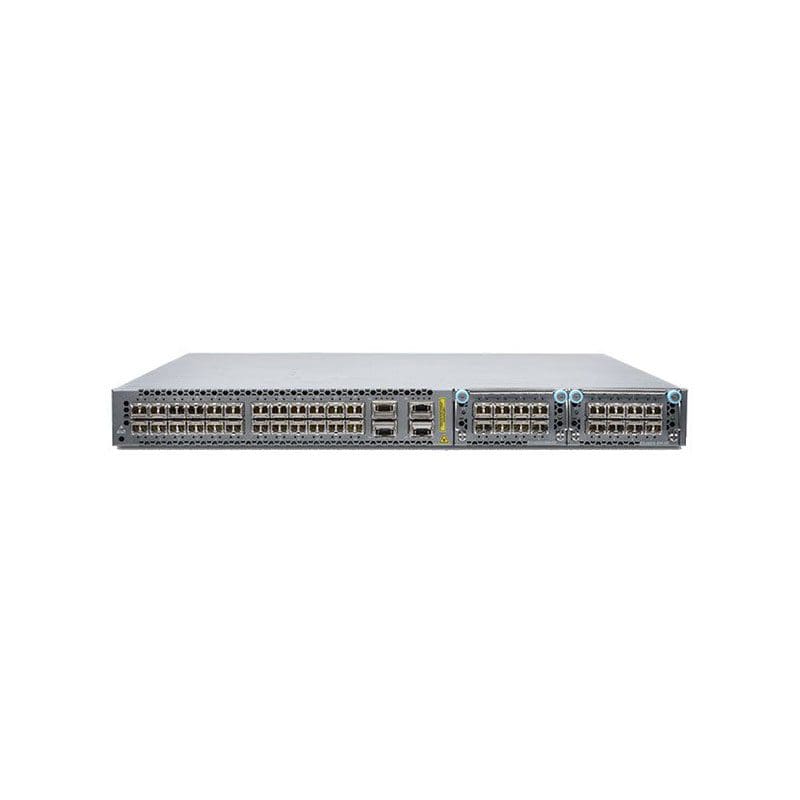

Juniper EX4600 24-Port Ethernet Switch
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX4600-40FO
Kit :E-Rate Bundle
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Performance
Performance :Switching capacity: 1.07 Bpps, Switching capacity: 1.44 Tbps
Capacity
Capacity :IPv4 routes (Multicast): 104000, VLAN Spanning Tree Protocol instances: 253, Equal-Cost Multipathing (ECMP) ways: 64, QoS hardware queues per port: 12, IPv4 routes (Unicast): 128000, IPv6 routes (Unicast): 64000, Firewall policies: 4000, Maximum member ports per LAG: 32, IPv4 hosts: 208000, Multiple Spanning Tree Protocol instances: 64, Host entries: 128000, ARP entries: 48000, IPv6 routes (Multicast): 52000, Virtual interfaces (VLANs): 4096
Networking
Type :Switch
