B-EX340024P-3M2-E Technical Specifications

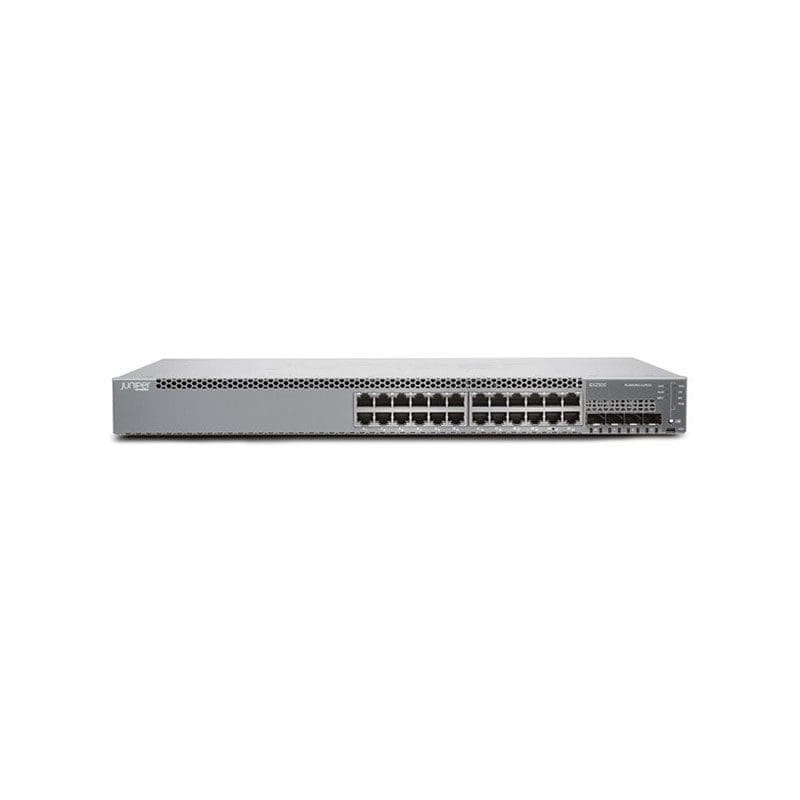

Juniper Networks EX Series EX3400-24P switch 24 ports managed rack mountable
Manufacturer :Juniper Mist Cloud Products
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX3400-24P
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Clock Speed :1 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB
Performance
Performance :Bidirectional switching capacity: 288 Gbps, Unidirectional switching capacity: 144 Gbps, Layer 3 throughput: 214 Mpps, Layer 2 throughput: 214 Mpps
Capacity
Capacity :QoS hardware queues: 12, Multiple Spanning Tree Protocol instances: 64, IPv6 routes (Unicast, prefixes): 3500, LAG groups: 128, IPv4 routes (Multicast): 4000, IPv6 neighbor discovery: 4096, IPv4 routes (Unicast, prefixes): 14000, IGMP snooping entries: 1000, ARP entries: 16000
