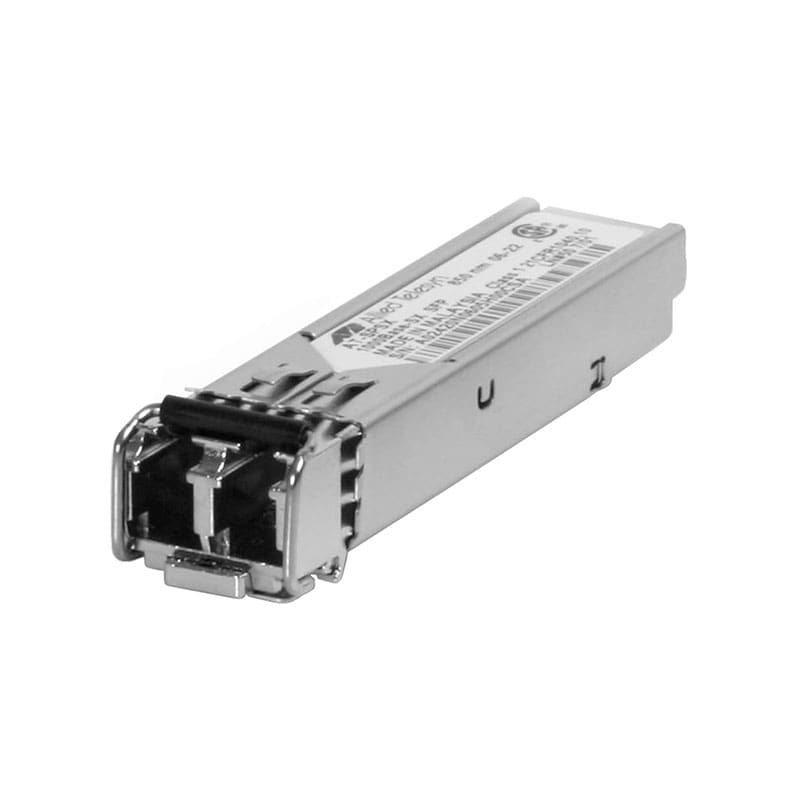

AT-SPSX-90 Technical Specification
Allied Telesis Fed 500M 850NM 1000SX SFP
Media Type:
Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm.
RX Wavelength: 850 nm.
Minimum Optical Budget: 7.5 dB
Maximum Distance: 550m
Supported Data Rate: 1.063-1.25Gbps
Supported Applications: Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 20 nm (840-860 nm)
Rx Wavelength Bandwidth: 20 nm (840-860 nm)
Minimum Transmitting Power: -9.5 dB
Maximum Transmitting Power: -3 dB
Receiver Sensitivity: -17 dBm
Receiver Overload: -3 dBm
Dispersion: 110 ps/nm
Transmitter Type: VSCEL Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECH
Connectivity
Cabling Type: Ethernet 1000Base-SX
Connectivity Technology: Wired
Transceiver, documentation
Networking Type: SFP (mini-GBIC) transceiver module
Connector 1: SFP+ Slot
