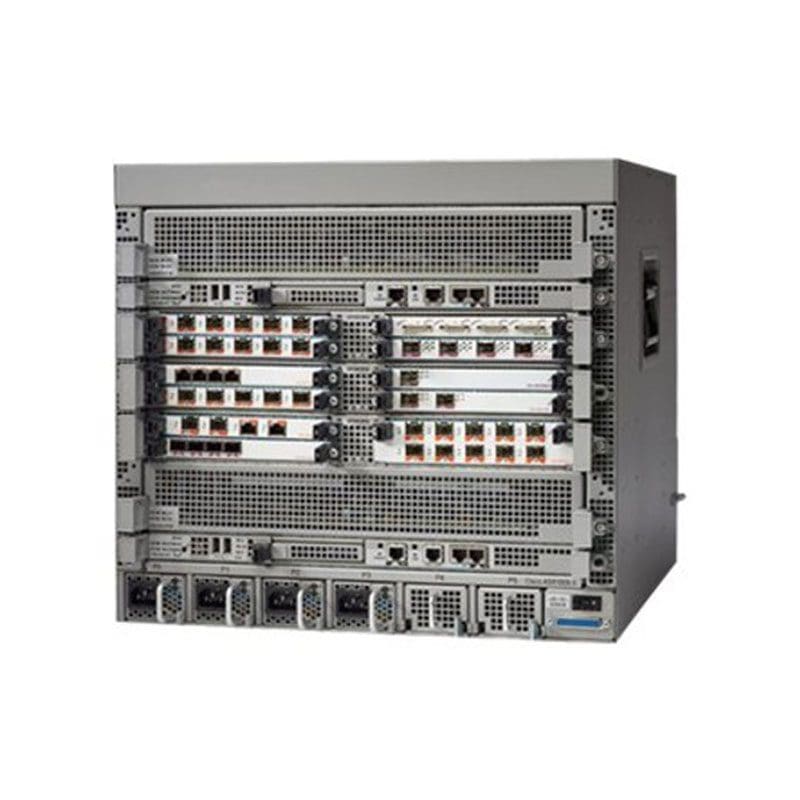

ASR1009-X Technical Specifications
Cisco ASR 1000 Series Router
Product Line: Cisco ASR
Product Series: ASR 1000
Product Model: ASR1009
Default memory: 8-GB DRAM RP2
8-GB DRAM RP3
Number of SIPs or Ethernet line cards supported: 3
Shared port adapters: 12 SPA slots
Ethernet port adapters: 6 EPA slots
Route processor: 2 route-processor slots
Network interface module: No
Weight
154 lb (70 kg)
Dimensions (W x D x H)
437.4 mm x 461.0 mm x 399.3 mm
