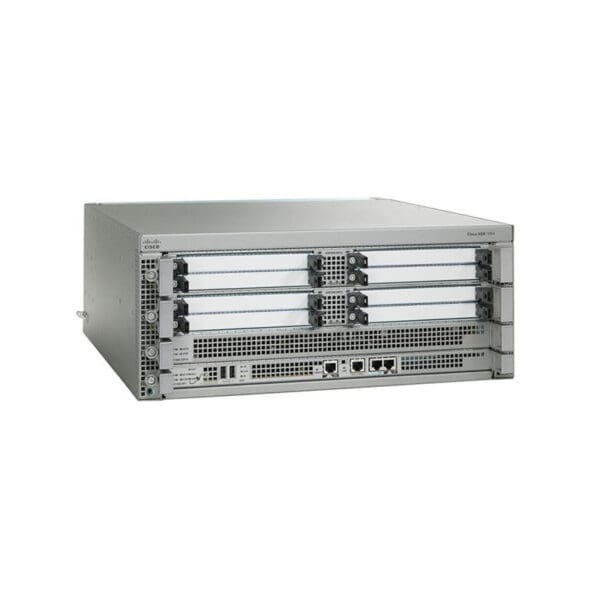

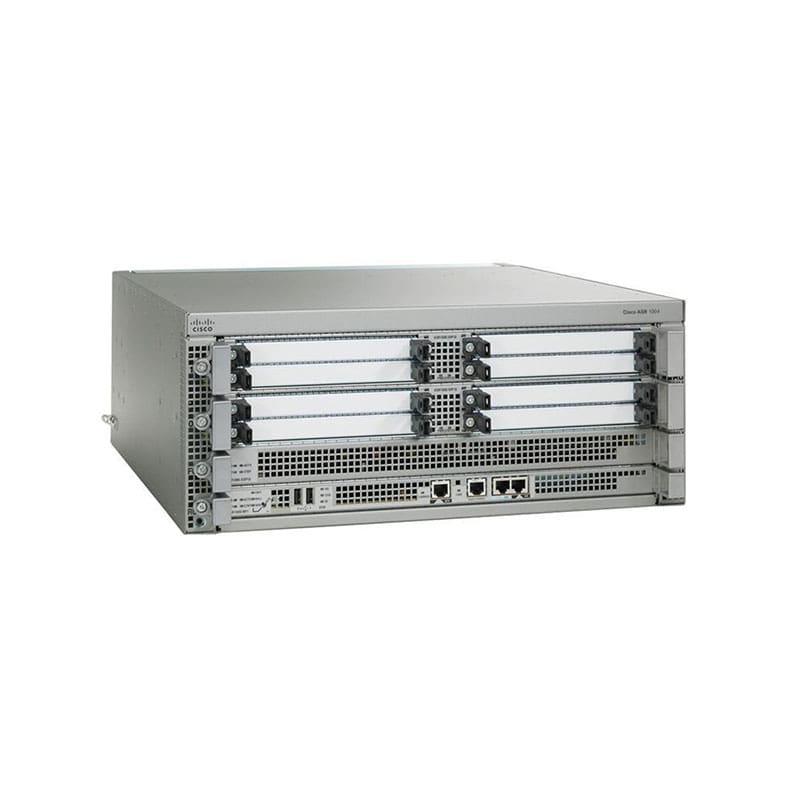

ASR1004-40G-NB Technical Specifications
Cisco ASR 1004 Router Management Port 10
Brand: Cisco
Product Condition: New
Manufacturer Cisco
Model Number or SKU# ASR1004-40G-NB
Product Series ASR 1000
Product Model ASR 1004
Product Name ASR 1004 Router
Product Type Router
Interfaces / Ports for Cisco Router
USB Yes
Powerline No
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
I/O Expansions of Cisco Expansion 10 Slots Router
Number of Total Expansion Slots 10
Expansion Slot Type Embedded Service Processor
Expansion Slot Type Route Processor
Expansion Slot Type Shared Port Adapter
Management & Protocols of Cisco ASR 1004 Router
Security Features
Flexible Packet Matching
Deep Packet Inspection
Cisco IOS Firewall
IPsec
VPN
3DES
AES
SSH
Memory
Standard Memory 8 GB
Memory Technology DRAM
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC
Input Voltage 220 V AC
Physical Characteristics
Compatible Rack Unit 4U
Form Factor Desktop
Miscellaneous
Package Contents
ASR 1004 Router
ASR1000 Route Processor 2
ASR1000 SPA Interface Processor 40
4 x 1X10GE SPA
Certifications & Standards EMC
FCC 47 CFR Part 15 Class A
VCCI Class A
AS/NSZ Class A
ICES-003 Class A
EN55022/CISPR 22 Information Technology Equipment (Emissions)
EN55024/CISPR 24 Information Technology Equipment (Immunity)
EN300 386 Telecommunications Network Equipment (EMC)
EN50082-1/EN61000-6-1 Generic Immunity Standard
KN22 Class A
Safety
UL60950-1
CSA C22.2 No. 60950-1-03
EN 60950-1
IEC 60950-1
AS/NZS 60950.
Dimensions & Weight
Height : 7 inch
Width : 17.2 inch
Depth : 18.2 inch
Weight : 5.50 lbs
