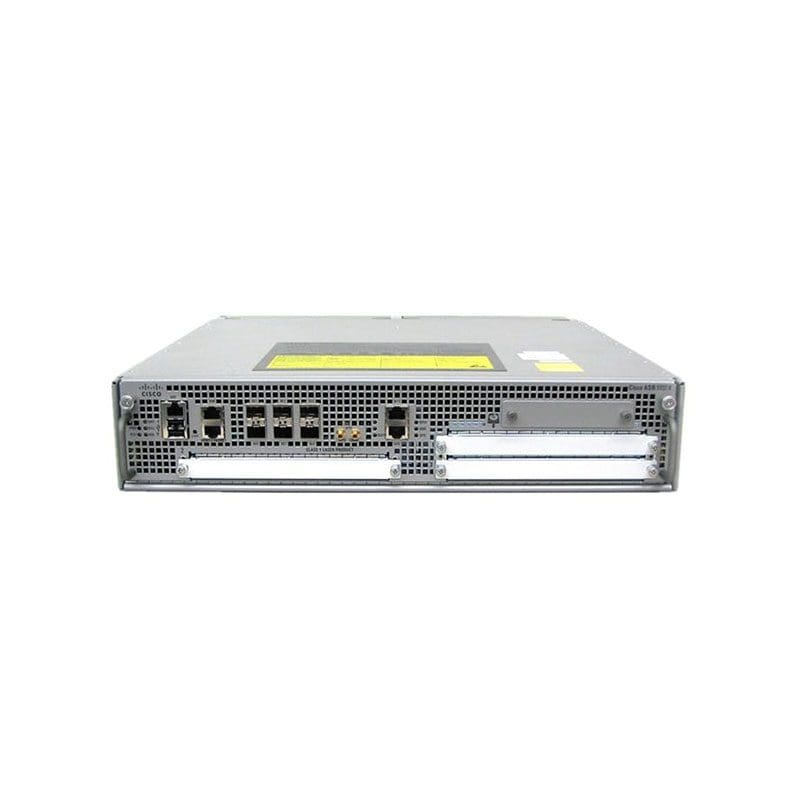

Refurbished ASR1002X-5G-VPNK9 Technical Specifications
Cisco ASR1000 Routers
Manufacturer Cisco Systems, Inc
Manufacturer Part Number ASR1002X-5G-VPNK9
Brand Name Cisco
Product Series ASR 1000
Product Model ASR1002-X
Product Name ASR1002-X, 5G, VPN Bundle, K9, AES License
Product Type Router Chassis
Technical Information−
Interfaces/Ports
USB Yes
Powerline No
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
I/O Expansions
Number of Total Expansion Slots 9
Expansion Slot Type Shared Port Adapter, SFP (mini-GBIC)
Network & Communication
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
VoIP Supported Yes
Management & Protocols
Security Features
SSH
AES
DES
3DES
IPsec
Flexible Packet Matching
NABR
Zone-Based Policy Firewall
Memory
Standard Memory 4 GB
Maximum Memory Supported 16 GB
Memory Technology DRAM
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC, 220 V AC
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 2U
Form Factor Rack-mountable
Height 3.5″
Width 17.2″
Depth 18.2″
Weight (Approximate) 38.25 lb
