ASR1002X-20G-SECK9 Technical Specifications

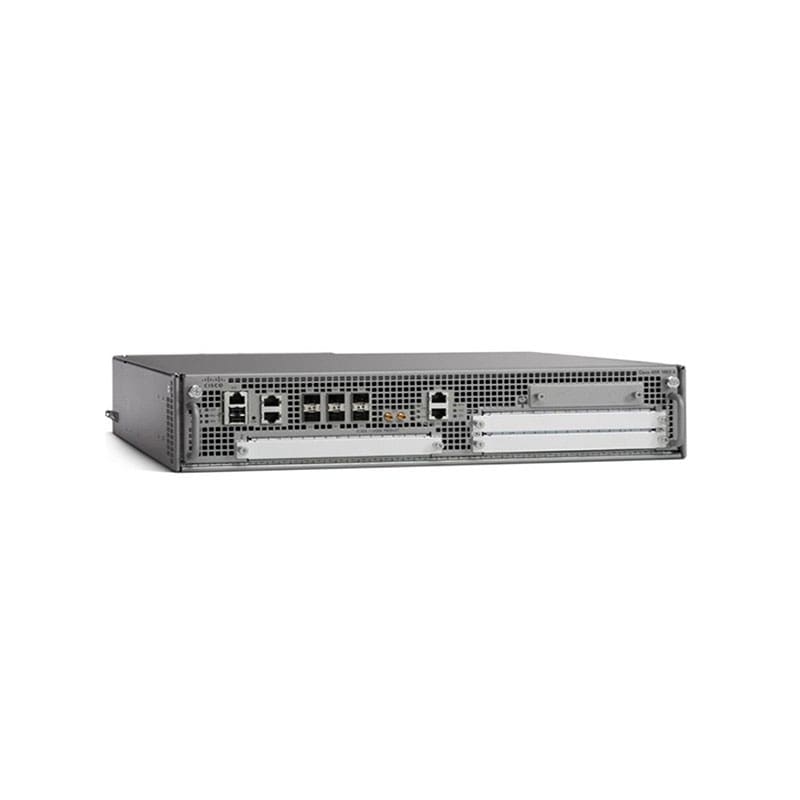

Cisco ASR 1000 Series 1002-X 6 x Ports Router
Specifications ASR1002X-20G-SECK9
Default memory 4-GB DRAM shared across route processor, ESP, and SIP
ESP support Cisco ASR 1002-X ESP with 5-Gbps (default)
Upgradabl e through software- activated feature license to 10, 20, or 36 Gbps
ESP bandwidth 5 to 36 Gbps
ESP memory Share the same control memory on route processor
SIPs and Ethernet line cards Integrated in chassis; not upgradable
External USB flash memory 1-GB USB flash- memory support
Operating Temperature
32 to 104°F (0 to 40°C)
Operating humidity 10% to 85%
