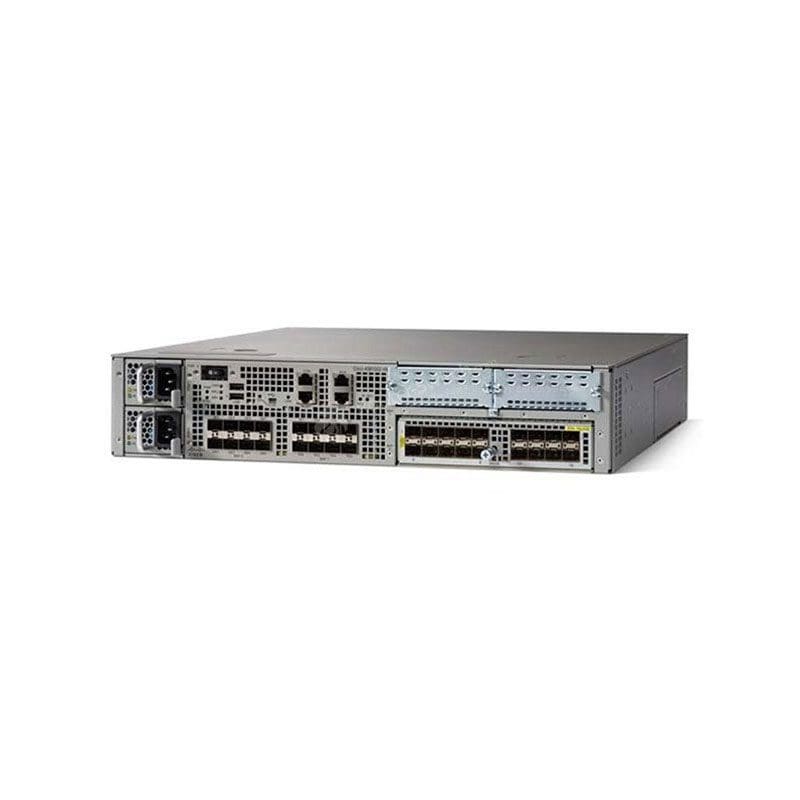

Refurbished ASR1002-HX Technical Specifications
Cisco ASR 1000 Services Routers
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASR
Model :1002-HX
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :1
RAM
Installed Size :16 GB
Max Supported Size :16 GB
Performance
Performance :Encryption throughput: up to 25 gbps, ESP bandwidth: 100 Gbps
Capacity
Capacity :IPSec tunnels: 8000
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet
Network / Transport Protocol :IPSec
Status Indicators :Active, Power, Standby, Status
Key Features :Firewall, USB port, VPN support
Features :Access Control List (ACL) support, Deep Packet Inspection (DPI), DiffServ Code Point (DSCP) support, Front to back airflow, In-Service Software Upgrade (ISSU), NAT support, NetFlow, Quality of Service (QoS)
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :8 x 1000Base-X – SFP (mini-GBIC), 8 x 10GBase-X – SFP+, Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x auxiliary – RJ-45, Management: 1 x console – RJ-45, USB: 1 x console, USB: 2 x 4 pin USB Type A
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :500 watt
System Requirements
OS Required :Cisco IOS XE 16.2.0S
Miscellaneous
Color Category :Silver
Included Accessories :Accessory kit, Ethernet Port Adapter (EPA) blank cover
Refurbished :Refurbished
Height (Rack Units) :2
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 22, CISPR 22, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, CSA C22.2 No. 60950-1-03, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN50082-1, EN55022, EN55022 Class A, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :19.3 inch
Height :3.5 inch
Weight :34.06 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85%
