Refurbished ASR-9901 Technical Specifications

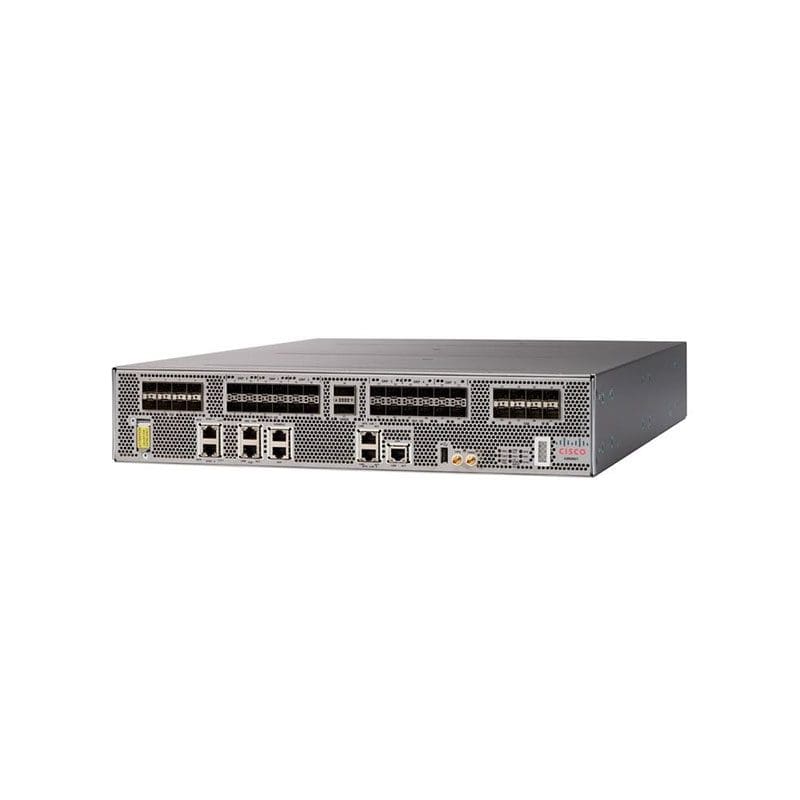

Cisco ASR 9901 router rack mountable
Brand :Cisco
Product Line :Cisco ASR
Model :9901
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Clock Speed :2.4 GHZ
RAM
Installed Size :32 GB
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 100 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Status Indicators :Status
Key Features :USB port
Features :Front to back airflow
Interface Provided
Interfaces :16 x 1000Base-X – SFP (mini-GBIC), 2 x 100GBase-X – QSFP28, 24 x 10GBase-X – SFP+, Management: 1 x, USB: 1 x
Software
Type :Cisco Software Manager
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN55022, EN55024, ETSI 300 019-1-1, ETSI 300 019-2-3, ETSI 300 019-3-1, FCC Class A certified, FDA, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 60825, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/UL/CSA/EN 60950-1, IEEE 1588, SR-3580 NEBS Level 3, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :23.6 inch
Height :3.4 inch
Weight :47.62 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
