Refurbished ASR-9901-256G Technical Specifications

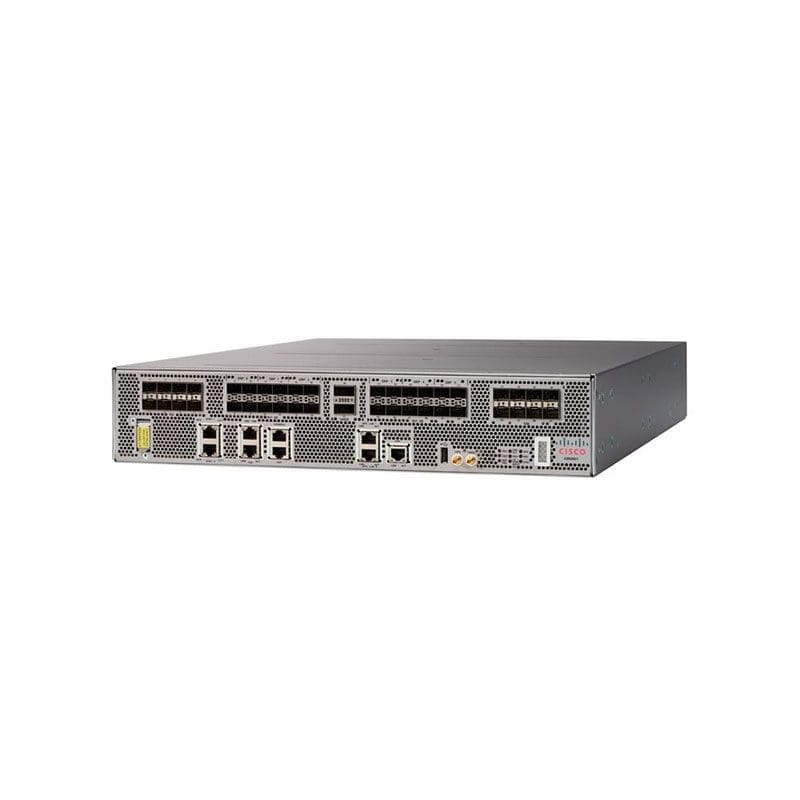

Cisco ASR 9901 256G Router
Brand :Cisco
Product Line :Cisco ASR
Model :9901
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.4 GHZ
RAM
Installed Size :32 GB
Performance
Performance :Bandwidth (full duplex): 256 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Features :Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), Front to back airflow, Hierarchical Quality of Service (HQoS), Integrated Routing and Bridging (IRB), Layer 2 VPN (L2VPN) support, Layer 3 VPN (L3VPN) support, MPLS support, Multichassis link aggregation (MC-LAG), Non-Stop Forwarding (NSF), Non-Stop Routing (NSR)
Expansion Slots
Expansion Slots :Route Switch Processor (RSP)
Interface Provided
Interfaces :1 x RJ-45, 16 x 1000Base-T – SFP (mini-GBIC), 2 x 100Gb Ethernet – QSFP28, 24 x 10Gb Ethernet / 1Gb Ethernet – SFP/SFP+, AUX: 1 x RS-232 – RJ-45, Console: 1 x RS-232 – RJ-45, Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Power Device
Type :Internal power supply
Power Redundancy :Yes
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Compliant Standards :ACA TS001, AS/NZS 3548 Class A, AS/NZS 60950, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 50121-4, EN 61000-3-2, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, ETSI 300 019, FCC Class A certified, FDA, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 61000-3-2, IEC/EN 60825, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/UL/CSA/EN 60950-1, SR-3580 NEBS Level 3, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :2.4 inch
Height :3.4 inch
Weight :47.62 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
