Refurbished ASR-9001-S Technical Specifications

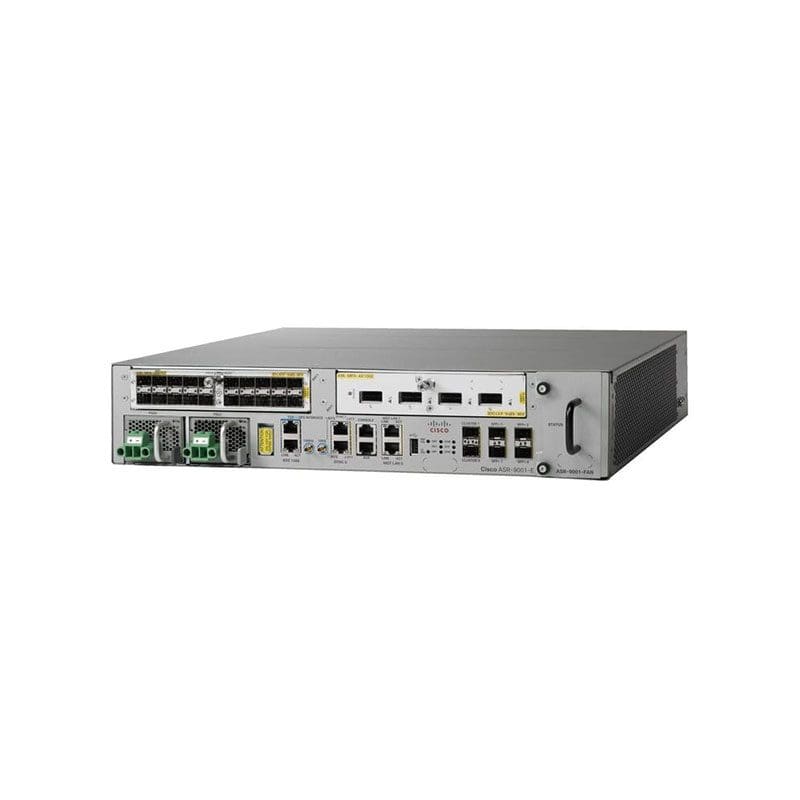

Cisco ASR 9001 router rack mountable
Brand :Cisco
Product Line :Cisco ASR
Model :9001
Packaged Quantity :1
RAM
Installed Size :8 GB
Performance
Performance :Bandwidth: 60 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Features :DWDM, Non-Stop Routing (NSR), Quality of Service (QoS)
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :2 x 10Gb Ethernet – SFP+, 4 x 10Gb Ethernet – SFP+
Power Device
Type :Internal power supply
Power Redundancy :Optional, Yes
Installed Qty :0, 2
Max Supported Qty :2
Miscellaneous
Height (Rack Units) :2
Compliant Standards :AS/NZS 3548 Class A, BSMI Class A, CISPR 22 Class A, EN 300 386, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN300-386, EN50082-1, EN55022, EN55024, FCC Class A certified, ICES-003 Class A, IEC 61000-4-11, VCCI Class A ITE
Dimensions & Weight
Width :17.4 inch
Depth :18.5 inch
Height :3.5 inch
Weight :30.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
