ASR-6405E Technical Specifications

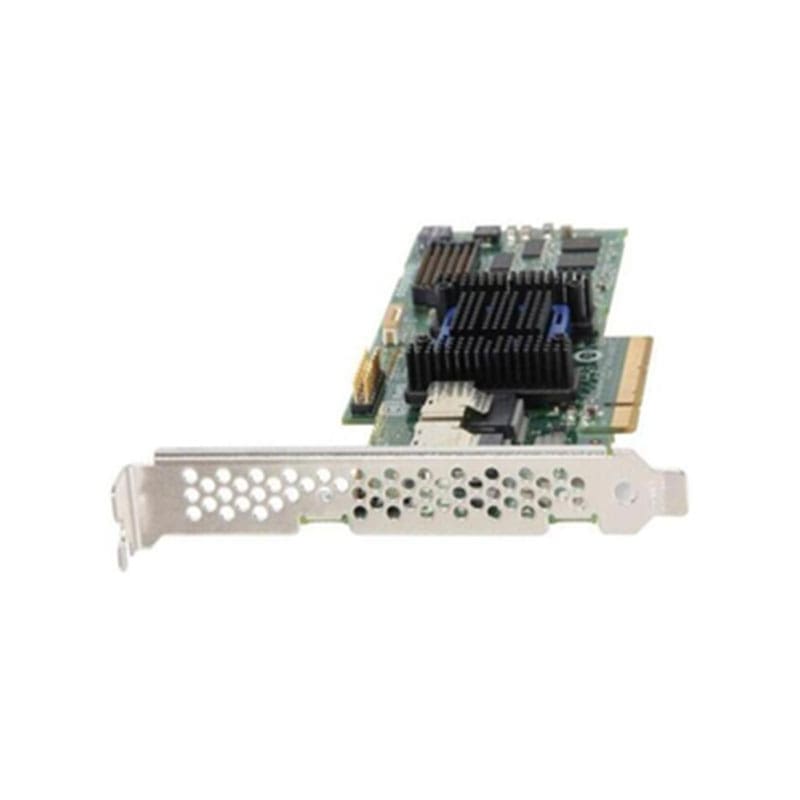

Adaptec 6405e Series 4-Ports Peripheral Component Interconnect Express (PCI-E) 2.0 Serial-Attached SCSI (SAS)-Serial Advanced Technology Attachment (SATA) Quad-Channel 128 Megabytes (MB) Raid Controller Card
Manufacturer: Adaptec
Model Number or SKU# ASR-6405E
Product Type: 4 Ports Adapter
Technical Information of the 4 Ports Adapter
Controller Interfaces Type: Supports Serial Attached SCSI (SAS) and Serial ATA/600.
Bus Type: Works with PCI Express 2.0 x1 slots.
Data Transfer Rate: Offers a data transfer rate of 600 Mbps per port.
RAID Supported: Yes
RAID Levels: Supports RAID 0, RAID 1, RAID 10, RAID 1E, and RAID JBOD (Just a Bunch Of Disks).
Drive Supported: Can accommodate up to 4 drives.
Platform Supported: Compatible with PCs and SPARC systems.
Standard Memory: Comes with 128 MB of memory.
Ports: Includes 1 x SFF-8087 6GB/s SAS (Mini-SAS Internal) port.
