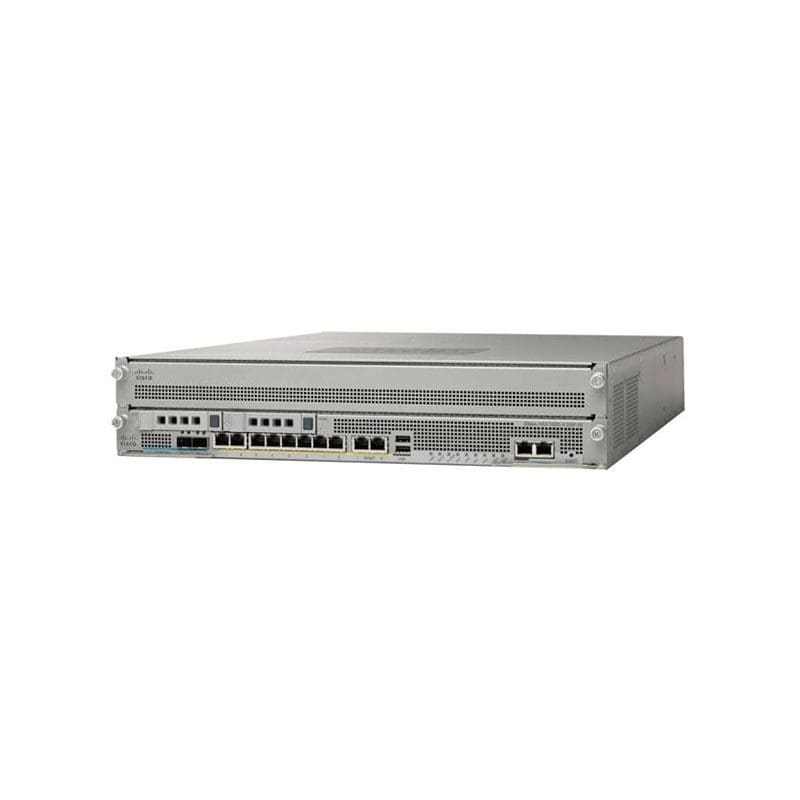

Refurbished ASA5585-S40-K9 Technical Specifications
Cisco ASA 5585-X Firewall Edition SSP-40 bundle security appliance
Brand :Cisco
Product Line :Cisco ASA
Model :5585-X Firewall Edition SSP-40 bundle
Packaged Quantity :1
RAM
Installed Size :12 GB
Flash Memory
Installed Size :2 GB, 2 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 200000 connections per second, Firewall + intrusion prevention throughput: 5 Gbps, Firewall throughput: 20 Gbps, VPN throughput: 3 Gbps
Capacity
Capacity :Concurrent sessions: 4000000, IPSec VPN peers: 10000, Nodes: unlimited, SSL VPN peers: 2, Virtual interfaces (VLANs): 1024
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol :IPSec
Features :Firewall protection, Load balancing, VLAN support, VPN support
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x expansion slot, 4 (total) / 4 (free) x
Interface Provided
Interfaces :1 x management, 1 x management – RJ-45, 2 x 1000Base-T (management) – RJ-45, 2 x USB 2.0 – Type A, 6 x 1000Base-T – RJ-45
Software
Type :Cisco VPN Client
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :2
Encryption Algorithm :AES, Triple DES
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :19 inch
Depth :26.5 inch
Height :3.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
