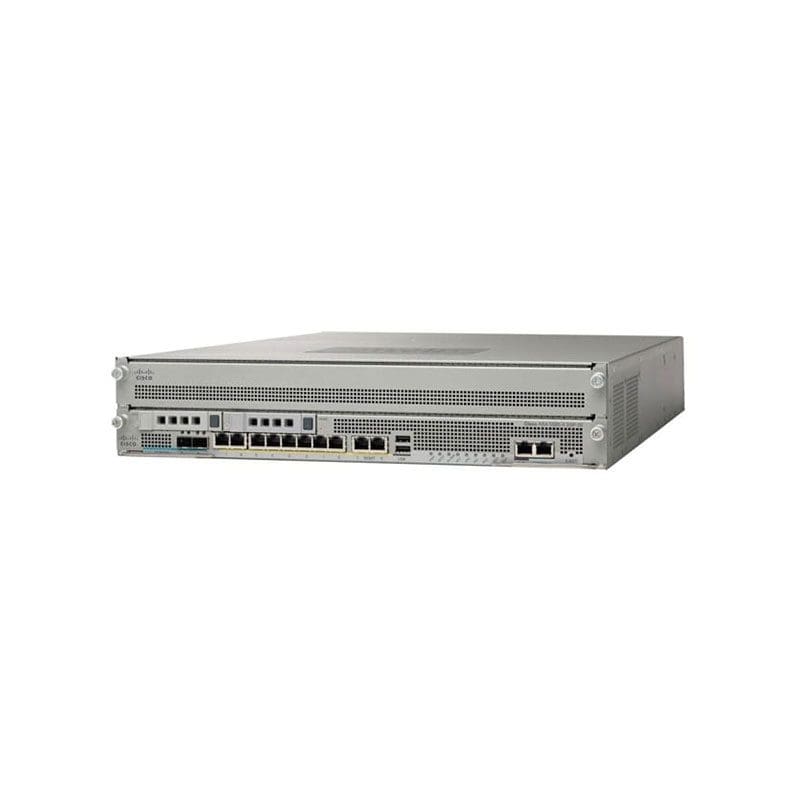

Refurbished ASA5585-S40-K8 Technical Specifications
Cisco ASA 5585 Series Firewall
Device Type Security appliance
Height (Rack Units) 2U
Installed Modules Qty (Max) 1 ( 2 )
Width 19 in
Depth 26.5 in
Height 3.5 in
Processor / Memory / Storage
RAM 12 GB
Flash Memory 2 GB
Networking
Form Factor Rack-mountable
Ports Qty 6
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec
Performance Firewall throughput: 10 Gbps ¦ VPN throughput: 3 Gbps ¦ Connection rate: 200000 connections per second
Capacity Concurrent sessions: 2000000 ¦ IPSec VPN peers: 10000 ¦ Virtual interfaces (VLANs): 250 ¦ SSL VPN peers: 2 ¦ Nodes: unlimited
Features Firewall protection, VPN support, load balancing, VLAN support
Encryption Algorithm DES
Expansion / Connectivity
Expansion Slots 2 (total) / 1 (free) x expansion slot ¦ 4 (total) / 4 (free) x
Interfaces 2 x 1000Base-T (management) – RJ-45 ¦ 2 x USB 2.0 – Type A ¦ 1 x management – RJ-45 ¦ 1 x management ¦ 6 x 1000Base-T – RJ-45
Miscellaneous
Cables Included 2 x network cable
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1
Power
Power Device Internal power supply – hot-plug
Voltage Required AC 120/230 V ( 50/60 Hz )
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
