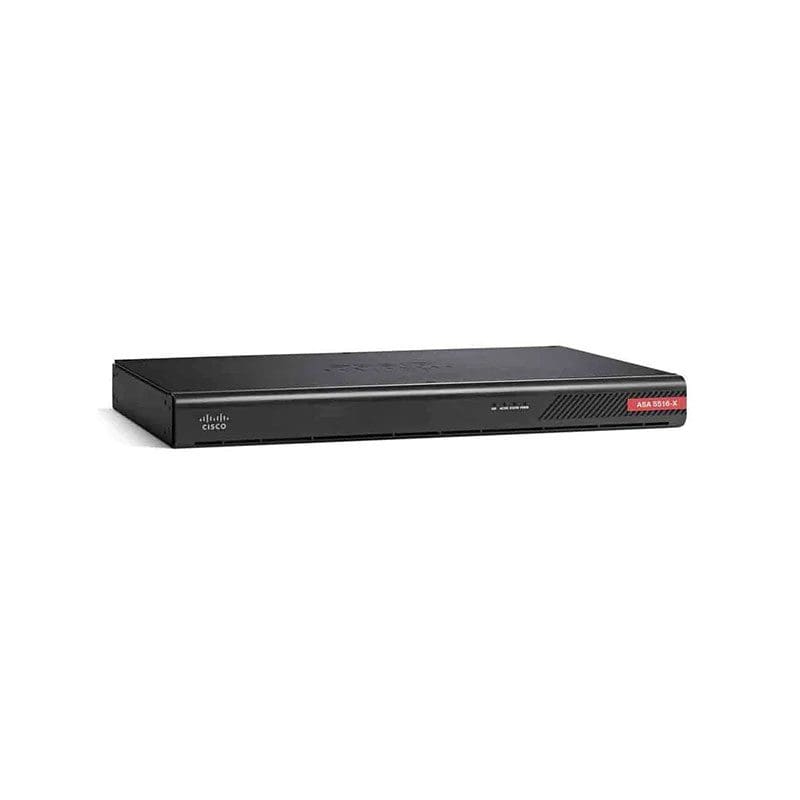

Refurbished ASA5516-FTD-K9 Technical Specification
Cisco ASA 5516-X with Firepower
Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco ASA
Model :5516-X with Firepower Threat Defense
Packaged Quantity :1
RAM
Installed Size :8 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Installed Qty :1
Capacity :100 GB
Performance
Performance :Application control (AVC) and IPS throughput: 450 Mbps, Application control (AVC) or IPS sizing throughput: 300 Mbps, Application control (AVC) throughput: 850 Mbps, Maximum inspection throughput: 1.8 Gbps, VPN throughput (3DES/AES): 250 Mbps
Capacity
Capacity :Maximum number of concurrent sessions: 250000, New sessions per second: 20000, Virtual interfaces (VLANs): 100
Networking
Type :Security appliance
Form Factor :Desktop
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Features :Content Security Management (CSM), Firewall protection, Intrusion Prevention System (IPS), VLAN support, VPN support
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 8 x 1000Base-T – RJ-45
Software
Type :Cisco Threat Defense 6.0.1
Power Device
Type :External power adapter
Installed Qty :1
Max Supported Qty :1
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :AES, Triple DES
Dimensions & Weight
Width :17.2 inch
Depth :11.3 inch
Height :1.7 inch
Weight :6.61 lbs
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
