Refurbished ASA5516-FPWR-K9 Technical Specification

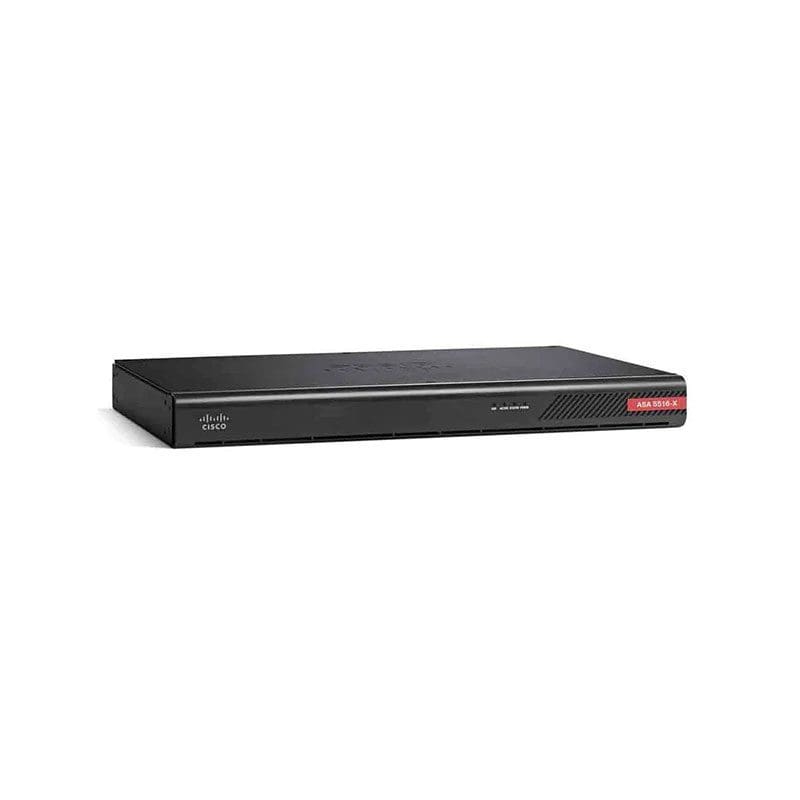

Cisco ASA 5516-X Security Appliance
Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco ASA
Model :5516-X with FirePOWER Services
Packaged Quantity :1
RAM
Installed Size :8 GB
Flash Memory
Installed Size :8 GB, 8 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Installed Qty :1
Capacity :100 GB
Performance
Performance :Application control (AVC) and IPS throughput: 125 Mbps, Application control (AVC) or IPS sizing throughput: 150 Mbps, Application control (AVC) throughput: 250 Mbps, Connection rate: 15000 connections per second, Inspection throughput: 1.8 Gbps, Multiprotocol firewall throughput: 900 Mbps, VPN throughput (3DES/AES): 250 Mbps
Capacity
Capacity :Cisco AnyConnect Premium/Apex VPN peers: 250, Concurrent sessions: 250000, IPSec VPN peers: 300, Virtual interfaces (VLANs): 100
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Features :Firewall protection, VLAN support, VPN support
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x console – RJ-45, 1 x mini-USB, 1 x USB 2.0 – Type A, 8 x 1000Base-T – RJ-45
Power Device
Type :External power adapter
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :AES, Triple DES
Compliant Standards :AS/NZS 60950, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 301 489.4, EN 301 489-1, EN 301 489-17, EN 301 489-24, EN 301 489-7, EN 301.489.1, EN 301.489.17, EN 301.489.24, EN 301.489.7, EN 301.489-24, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55022, EN55024, IEC 60950, UL 60950, VCCI V-3
Dimensions & Weight
Width :17.2 inch
Depth :11.3 inch
Height :1.7 inch
Weight :6.61 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
