Refurbished ASA5515-K9 Technical Specification

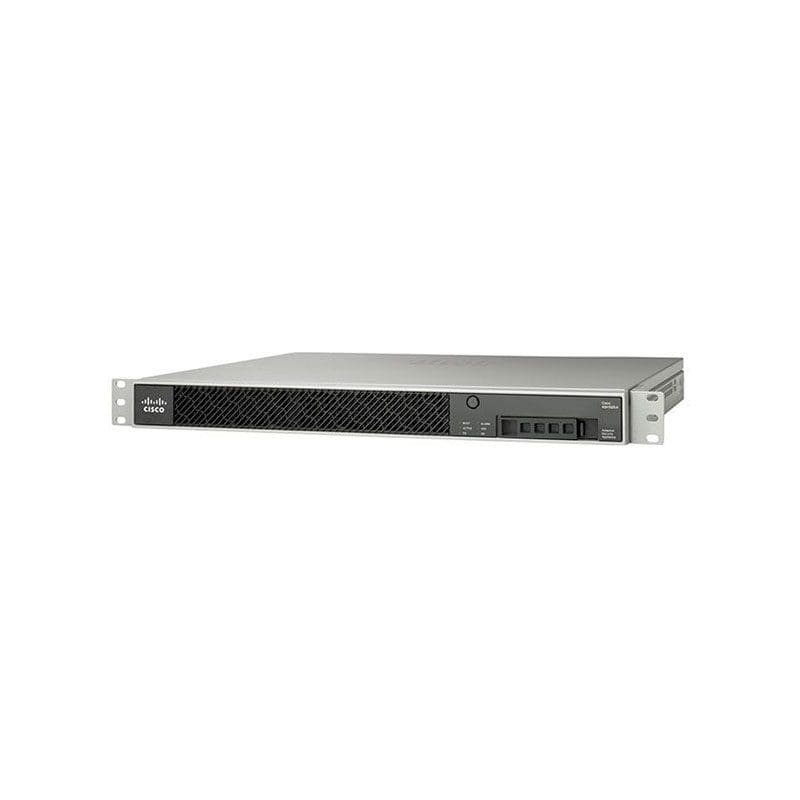

Cisco ASA 5515-X Firewall Security Appliance
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASA
Model :5515-X Firewall Edition
Packaged Quantity :1
RAM
Installed Size :8 GB
Optical Storage
Type :None
Performance
Performance :Connection rate: 15000 connections per second, Firewall + intrusion prevention throughput: 400 Mbps, Firewall throughput: 1.2 Gbps, VPN throughput (3DES/AES): 250 Mbps
Capacity
Capacity :Concurrent sessions: 250000, IPSec VPN peers: 250, Security contexts: 2, SSL VPN peers: 2, Virtual interfaces (VLANs): 100
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :6
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Status Indicators :Active, Alarm, HDD activity, Power
Features :Firewall protection, VLAN support, VPN support
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x management – RJ-45, 2 x USB 2.0 – Type A, 6 x 1000Base-T – RJ-45
Software
Type :Drivers & Utilities
Power Device
Type :Internal power supply
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :1
Encryption Algorithm :AES, Triple DES
Compliant Standards :ANSI C63.4-2009, CAN/CSA C22.2 No. 60950-1-07, CISPR 22, C-Tick, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60950-1, UL 60950-1, VCCI
Dimensions & Weight
Width :16.9 inch
Depth :15.6 inch
Height :1.7 inch
Weight :13.45 lbs
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
