Refurbished ASA5512-FPWR-K9 Technical Specification

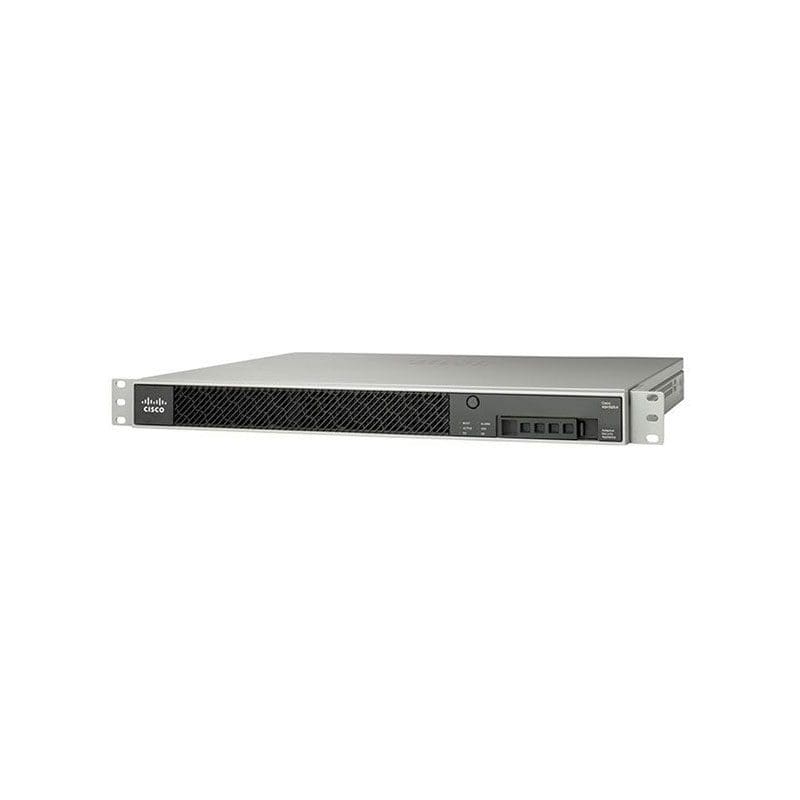

Cisco ASA 5512-X Security Appliance
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco ASA
Model :5512-X
Bundled with :FirePOWER Services
Packaged Quantity :1
RAM
Installed Size :4 GB
Hard Drive
Type :SSD
Installed Qty :1
Capacity :120 GB
Optical Storage
Type :None
Performance
Performance :Application control (AVC) and IPS throughput: 150 Mbps, Application control (AVC) or IPS sizing throughput: 100 Mbps, Application control (AVC) throughput: 300 Mbps, Connection rate: 10000 connections per second, Inspection throughput: 1 Gbps, Multiprotocol firewall throughput: 500 Mbps, VPN throughput (3DES/AES): 200 Mbps
Capacity
Capacity :Cisco AnyConnect Premium/Apex VPN peers: 2 (maximum 250), Concurrent sessions: 100000, IPSec VPN peers: 250, Virtual interfaces (VLANs): 50 (upgradeable to 100)
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :6
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Status Indicators :Active, Alarm, HDD activity, Power
Features :Firewall protection, VLAN support, VPN support
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x serial – RJ-45, 2 x USB 2.0 – Type A, 6 x 1000Base-T – RJ-45
Software
Type :Drivers & Utilities
Power Device
Type :Internal power supply
Power Provided :56 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
Height (Rack Units) :1
Encryption Algorithm :AES, Triple DES
Compliant Standards :ANSI C63.4-2009, CAN/CSA C22.2 No. 60950-1-07, CISPR 22, C-Tick, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60950-1, UL 60950-1, VCCI
Dimensions & Weight
Width :16.9 inch
Depth :15.6 inch
Height :1.7 inch
Weight :13.38 lbs
