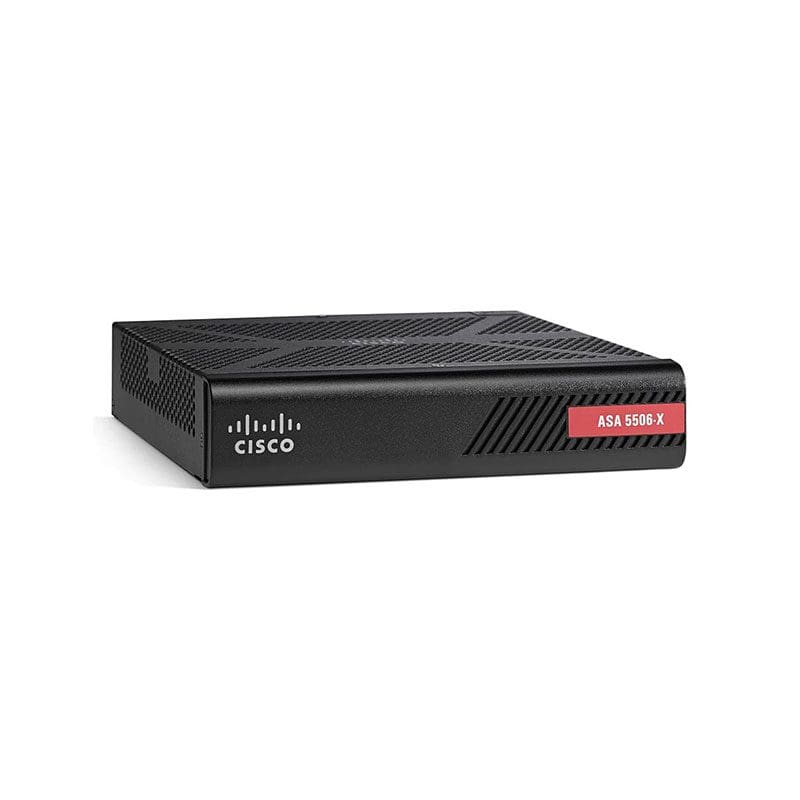

Refurbished ASA5506-K9 Technical Specification
Cisco ASA 5506-X W/ FIREPOWER SVC
Networking
Form Factor Desktop
Ports Qty 8
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Performance Inspection throughput: 750 Mbps ¦ Multiprotocol firewall throughput: 300 Mbps ¦ Connection rate: 5000 connections per second ¦ Application control (AVC) throughput: 250 Mbps ¦ Application control (AVC) and IPS throughput: 125 Mbps ¦ VPN throughput (3DES/AES): 100 Mbps ¦ Application control (AVC) or IPS sizing throughput: 90 Mbps
Capacity Concurrent sessions: 20000 (maximum 50000) ¦ Cisco AnyConnect Premium/Apex VPN peers: 2 (maximum 50) ¦ IPSec VPN peers: 10 (upgradeable to 50) ¦ Virtual interfaces (VLANs): 5 (upgradeable to 30)
Features Firewall protection, VPN support, VLAN support, fanless
Encryption Algorithm Triple DES, AES
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Device Type Security appliance
Width 9.2 in
Depth 7.9 in
Height 1.7 in
Weight 4.01 lbs
Processor / Memory / Storage
RAM 4 GB
Flash Memory 8 GB
Hard Drive SSD 50 GB x 1 – mSATA
Expansion / Connectivity
Interfaces 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 1 x mini-USB ¦ 1 x console – RJ-45 ¦ 8 x 1000Base-T – RJ-45
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
