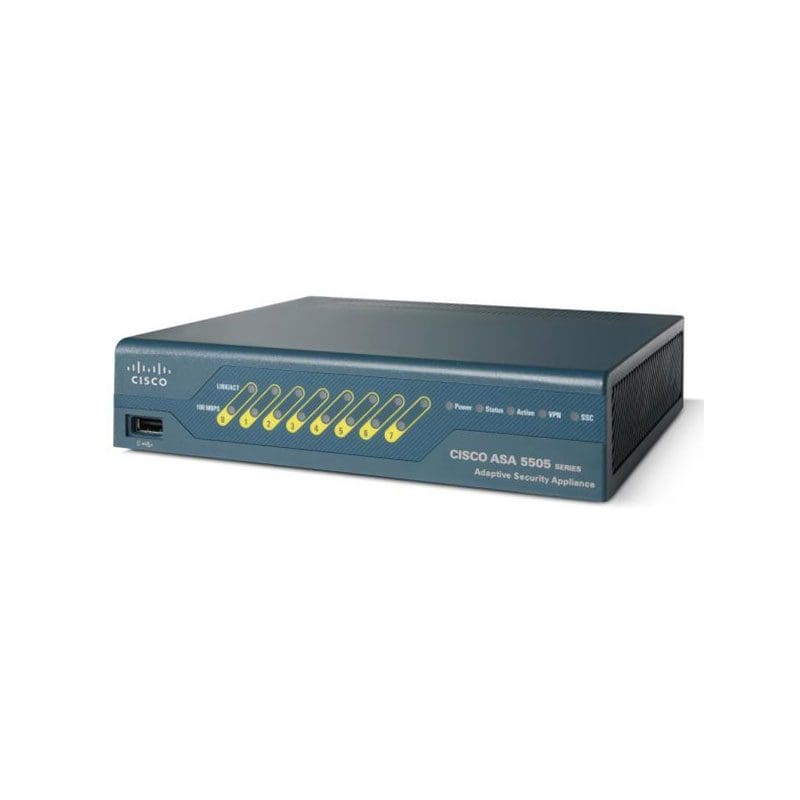

Refurbished ASA5505-UL-BUN-K9 Technical Specification
CISCO BDL-CHAS S/W UL 3DES/AES
Networking
Form Factor External
Ports Qty 8
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Network / Transport Protocol IPSec
Performance Firewall throughput: 150 Mbps ¦ VPN throughput: 100 Mbps
Capacity IPSec VPN peers: 10 ¦ SSL VPN peers: 2 ¦ Concurrent sessions: 10000
Features Firewall protection, DMZ port, power over Ethernet (PoE), VPN support, VLAN support, wall mountable
Encryption Algorithm DES, Triple DES, AES, SSL
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95%
General
Device Type Security appliance
Installed Modules Qty (Max) 0 (1)
Width 7.9 in
Depth 6.9 in
Height 1.7 in
Weight 3.97 lbs
Processor / Memory / Storage
RAM 512 MB (512 MB max) DDR SDRAM DIMM 184-pin
Flash Memory 128 MB
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 6 x 100Base-TX – RJ-45 ¦ 2 x 100Base-TX (PoE) – RJ-45 ¦ 3 x USB 2.0 – Type A ¦ 1 x management – RJ-45
Power
Power Over Ethernet (PoE) Supported PoE
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
