ARC-8042-12 Technical Specifications

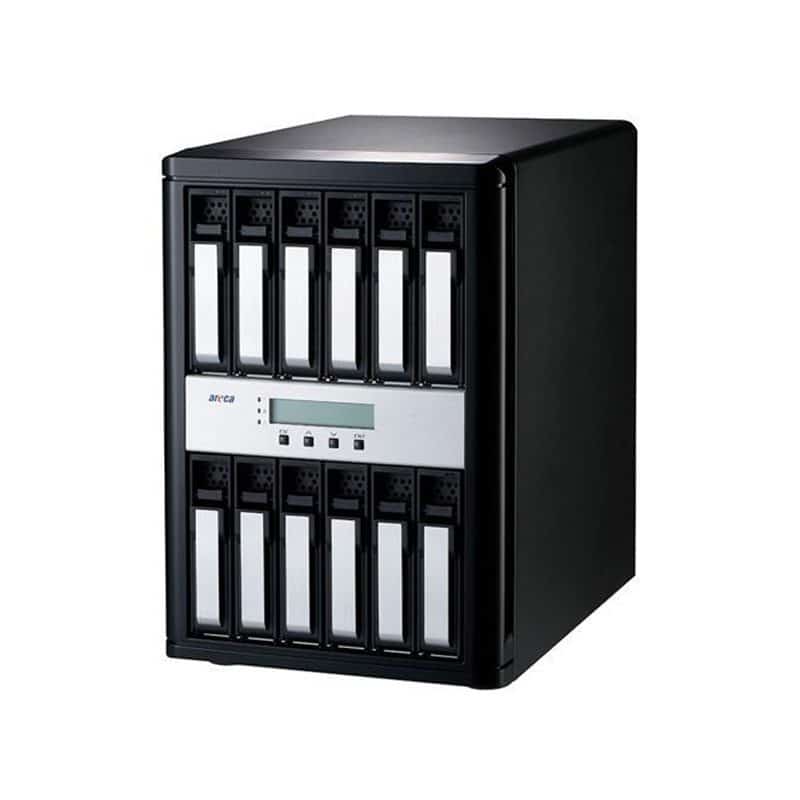

Areca 12-bay 12Gb/s SAS to SAS Tower RAID Subsystem
Brand areca
Manufacturer Part Number : ARC-8042-12
Internal Ports 12 x SAS ports
Expansion Support Up to 512 devices using SAS expanders (one external Mini-SAS HD SFF-8644 connector)
Host Interface Two Mini-SAS HD SFF-8644 connectors
Data Transfer Rate Up to 12Gb/s per port
Cache Protection 2GB DDR3-1866 ECC Protection
Processor Dual Core RAID-on-Chip (ROC) 1.2GHz processor
Operating System OS Independent
RAID Features • RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
• Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100)
• Configurable stripe size up to 1024KB
• Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot- spare drives
• Multiple pairs SSD/HDD disk clone function
• SSD automatic monitor clone (AMC) support
• SED (Self-encrypting drives) function support
• Support for native 4K and 512 byte sector devices
• Support HDD firmware update
• Hot-swap and redundant components for increasing availability
RAID Management Software • Flashable firmware via RS-232 and LAN port
• Push Buttons and LCD for setup and status
• Firmware-embedded manager via RS-232 port
• Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function
• API with sample and functional code
• ArcCLI (command-line interface)
• ArcSAP monitor utility easily manage multiple RAID units
Power Supply 400W
Operating Temperature 0 °C to 40 °C
Operating Humidity 10% to 80%, non-condensing
Regulatory Certification CE, FCC
Physical Dimensions
(H x W x D) 8.1 x 12.2 x 11.4 in
(206 x 310 x 290 mm)
