APCRBC118J Technical Specifications

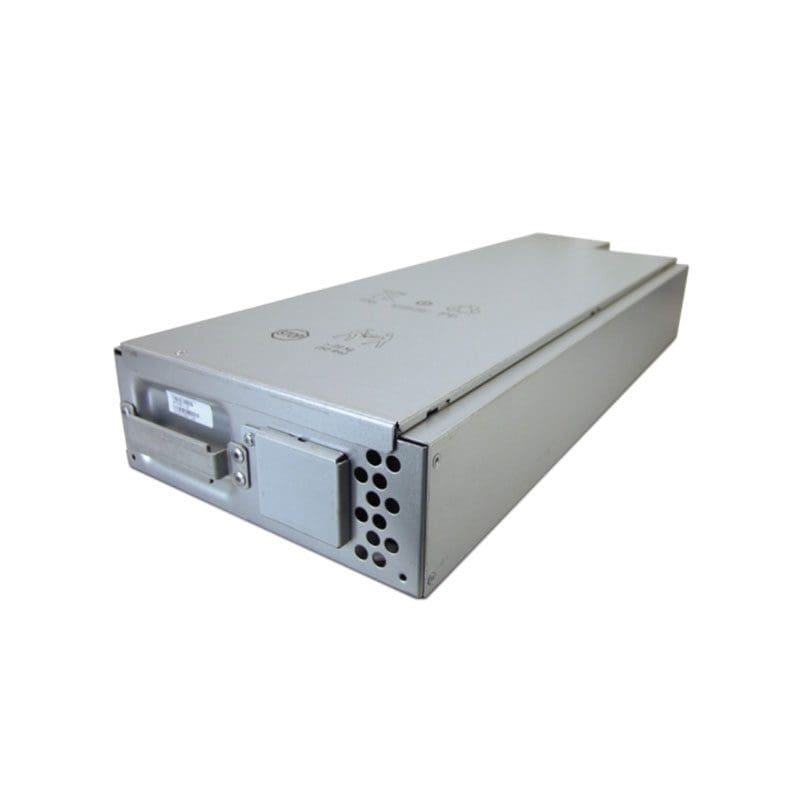

APC Replacement Battery Cartridge #118J
Output
Battery Output Voltage
120
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery mounting
Enclosed battery cartridge
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery blocks per string 10
Battery Volt-Amp-Hour Capacity 600
Physical
Maximum Height
3.0inches (76MM, 7.6CM)
Maximum Width
8.0inches (203MM, 20.3CM)
Maximum Depth
23.0inches (584MM, 58.4CM)
Net Weight
49.0lbs. (22.27KG)
Shipping weight
55.4lbs. (25.18KG)
Shipping Height
8.96inches (228MM, 22.8CM)
Shipping Width
15.48inches (393MM, 39.3CM)
Shipping Depth
29.98inches (761MM, 76.1CM)
Units per Pallet
12.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
