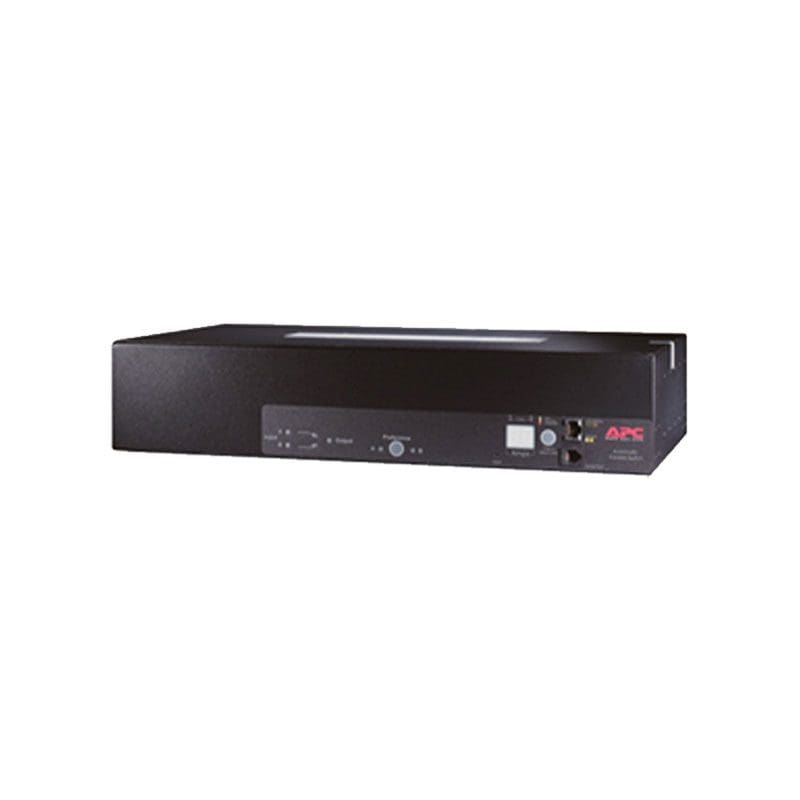

AP7732 Technical Specifications
APC Automatic Transfer Switch IEC 320-C19, IEC 320-C13 2U
Manufacturer Part Number AP7732
Brand Name APC by Schneider Electric
Product Type Automatic Transfer Switch
Technical Information
Receptacles 2 x IEC 320-C19
16 x IEC 320-C13
Power Description
Output Voltage 208 V AC
Current 30 A
24 A
Physical Characteristics
Form Factor Rack-mountable
Rack Height 2U
Height 3.5″
Width 17″
Depth 9.3″
Weight (Approximate) 14.30 lb
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
