AP770A Technical Specifications

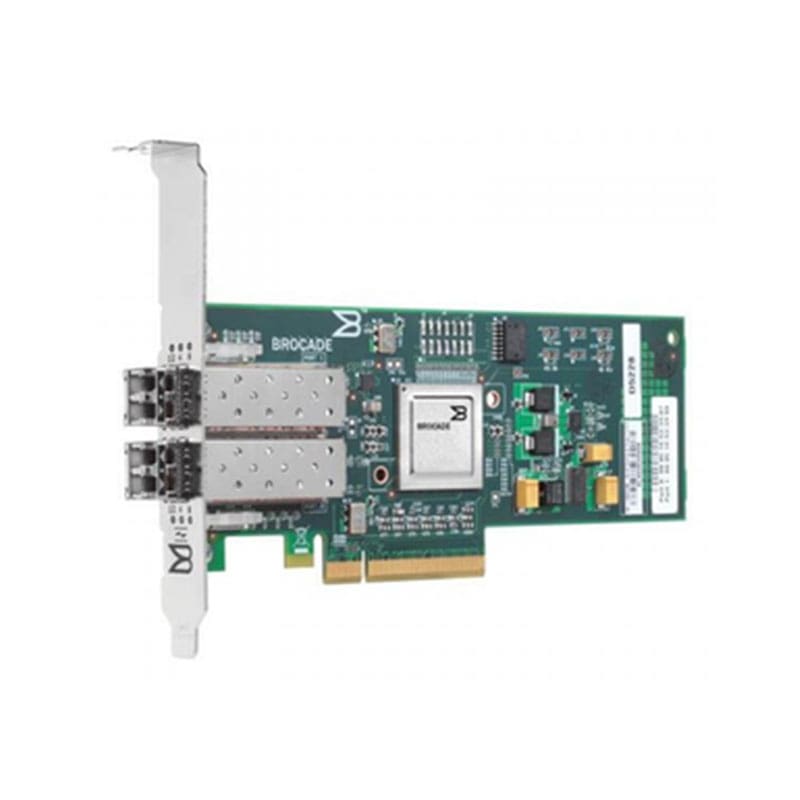

HP Storageworks 82B 8GB Dual Channel PCI-Express Host Bus Adapter
Manufacturer: HP
Part Number or SKU#: AP770A
Type: Controller
Controller Type: Host Bus Adapter
Technical Information
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express x8
PCI Specification Revision: PCIe 2.0
Ports: 8Gb Fibre Channel x 2
Connectivity Technology: Wired
Data Link Protocol: 8GB Fibre Channel (SW)
Fibre Channel: FC-SP
Data Transfer Rate: 8.5 Gbps
Expansion & Connectivity
Interfaces: 2 x 8Gb Fibre Channel (short wave) – LC multi-mode x 2
Compatible Slots: 1 x PCI Express x8
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 – 95%
Dimension and Weight
Depth: 6.6 in
Height: 2.7 in
