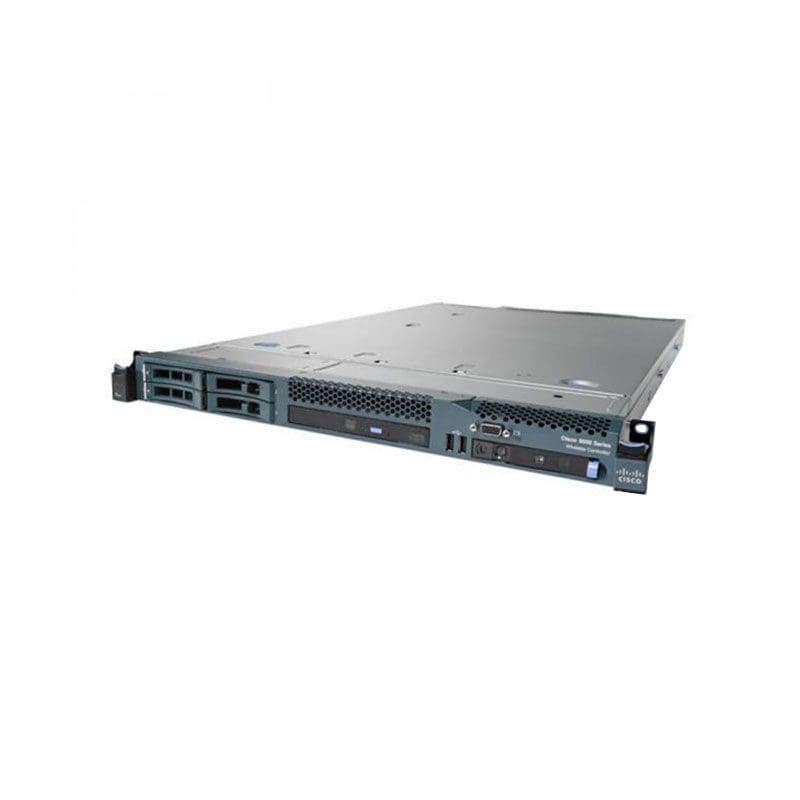

Refurbished AIR-CT8510-HA-K9 Technical Specification
Cisco 8500 Wireless Controller
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :8500 Series Wireless Controller for High Availability
Packaged Quantity :1
Optical Storage
Type :None
Capacity
Capacity :Virtual interfaces (VLANs): 4096
Networking
Type :Network management device
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet
Network / Transport Protocol :ARP, BOOTP, DHCP, ICMP/IP, IPSec, TCP/IP, UDP/IP
Remote Management Protocol :HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Status Indicators :HDD activity, Link/activity, Power, System
Features :CAPWAP support, CleanAir technology, IPv6 support, RADIUS support, SNTP support, Syslog support, VLAN support, Wi-Fi Multimedia (WMM) support
Compliant Standards :IEEE 802.11a, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, Wi-Fi CERTIFIED
Expansion Bays
Expansion Bays :2 (total) / 2 (free) x hot-swap – 2.5″
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x 100Base-TX (management), 1 x serial – DB-9, 2 x 10Gb Ethernet, 2 x video, 4 x USB – Type A
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
