Refurbished AIR-CT5760-HA-K9 Technical Specification

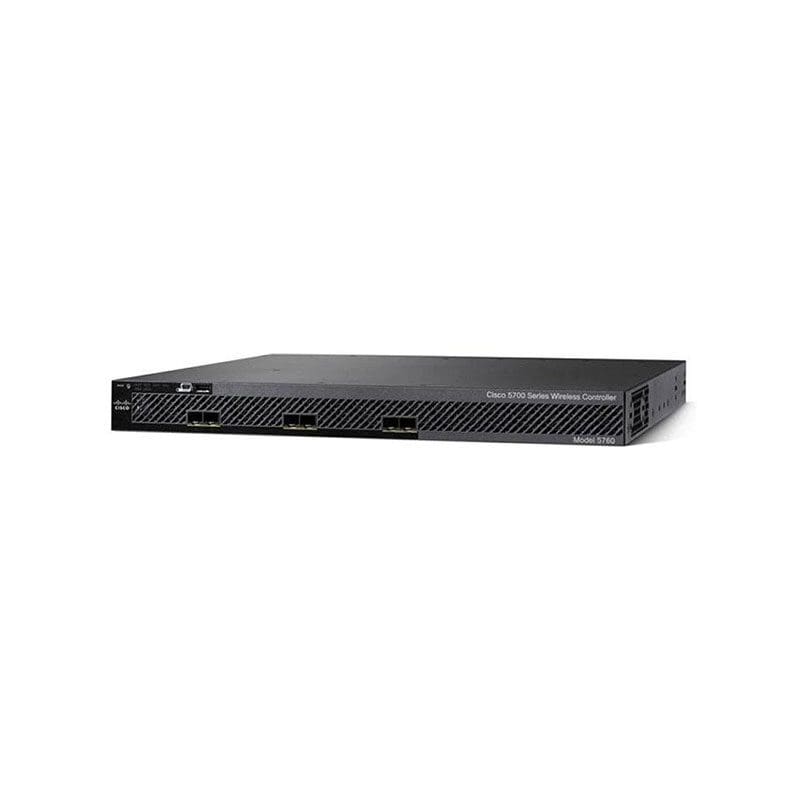

Cisco 5760 Wireless Controller
Networking
Form Factor External
Ports Qty 6
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP
Routing Protocol CIDR
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Status Indicators Port transmission speed, port duplex mode, power, system, status, link/activity
Features DHCP support, BOOTP support, ARP support, Syslog support, manageable, IPv6 support, SNTP support, Stateful switchover (SSO), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Cisco StackWise Technology, CleanAir technology, NetFlow, CAPWAP support, ClientLink 2.0 technology
Encryption Algorithm DES, Triple DES, RC4, MD5, AES, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, 128-bit AES, AES-CCM, AES-CBC, DTLS, 1024-bit RSA, 2048-bit RSA, TLS 1.1
Authentication Method RADIUS, Radio Service Set ID (SSID), TACACS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.1AX, IEEE 802.11ac
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Device Type Network management device
Height (Rack Units) 1U
Width 17.5 in
Depth 17.7 in
Height 1.8 in
Weight 17.2 lbs
Expansion / Connectivity
Expansion Slots 6 (total) / 6 (free) x SFP+
Interfaces 1 x management – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB ¦ 2 x USB – Type A ¦ 2 x network stack device
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 350 Watt
