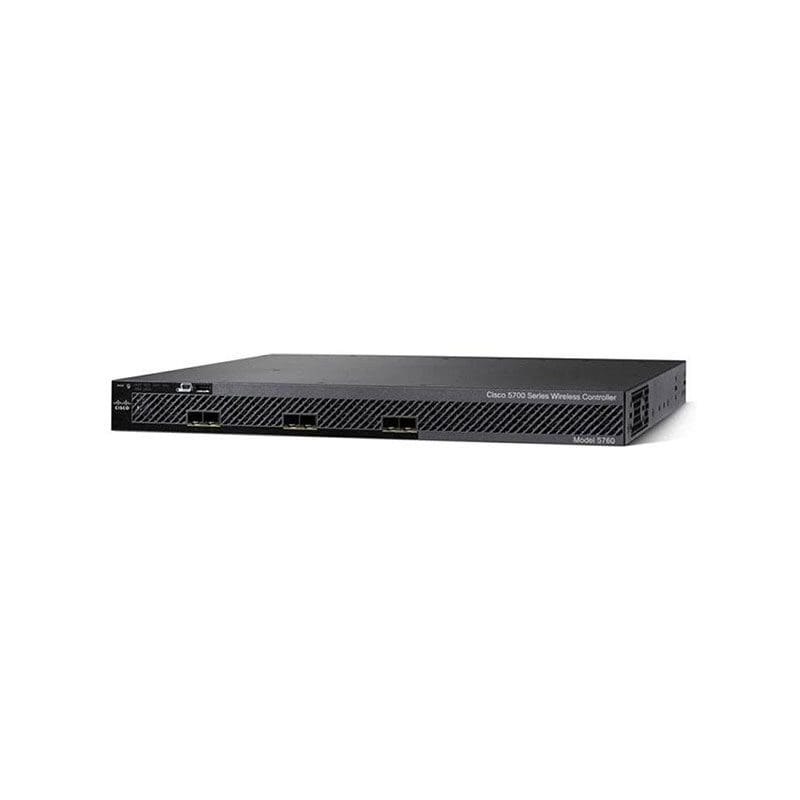

Refurbished AIR-CT5760-25-K9 Technical Specification
Cisco 5760 Wireless Controller
Networking
Form Factor External
Ports Qty 6
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP
Routing Protocol CIDR
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Capacity Manageable access points: 25
Status Indicators Power, system, link/activity
Features DHCP support, BOOTP support, ARP support, Syslog support, manageable, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, CleanAir technology, CAPWAP support
Encryption Algorithm DES, Triple DES, RC4, MD5, AES, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, 128-bit AES, AES-CCM, AES-CBC, DTLS, 1024-bit RSA, 2048-bit RSA, TLS 1.1
Authentication Method RADIUS, TACACS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.1AX, IEEE 802.11ac
Environmental Parameters
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Device Type Network management device
Height (Rack Units) 1U
Width 17.5 in
Depth 17.7 in
Height 1.8 in
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot ¦ 6 (total) / 6 (free) x
Interfaces 1 x management – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB ¦ 2 x USB – Type A
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
