Refurbished AIR-CT5520-50-K9 Technical Specification

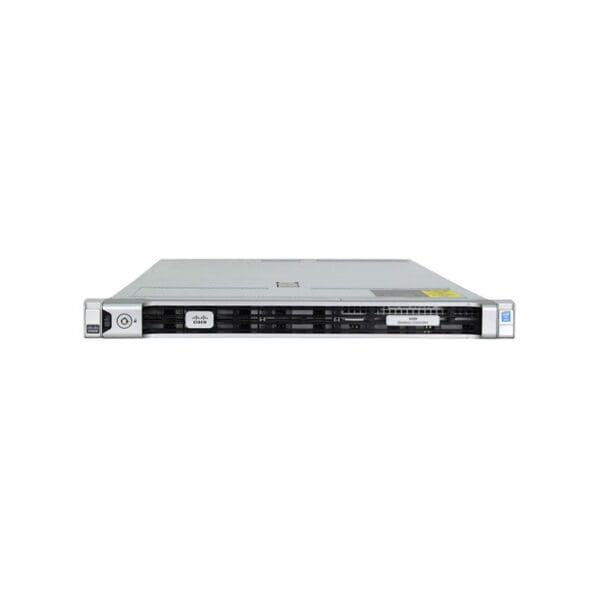

Cisco 5520 Wireless Controller
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour
Routing Protocol CIDR
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Performance Throughput: 20 Gbps
Capacity Virtual interfaces (VLANs): 4096
Features VLAN support, Syslog support, IPv6 support, SNTP support, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, CAPWAP support, rogue access point detection, Cisco VideoStream technology, Cisco FlexConnect
Encryption Algorithm DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC, TLS 1.1
Authentication Method RADIUS, X.509 certificates, Radio Service Set ID (SSID), TACACS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.1ae, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Device Type Network management device
Height (Rack Units) 1U
Width 19 in
Depth 31 in
Height 1.7 in
Weight 29.98 lbs
Expansion / Connectivity
Expansion Bays 10 hot-swap – 2.5″
Interfaces 2 x 10Gb Ethernet – SFP+ ¦ 3 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 2 x USB 3.0 – Type A ¦ 1 x keyboard / video / mouse (KVM) ¦ 1 x VGA – HD-15
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 770 Watt
