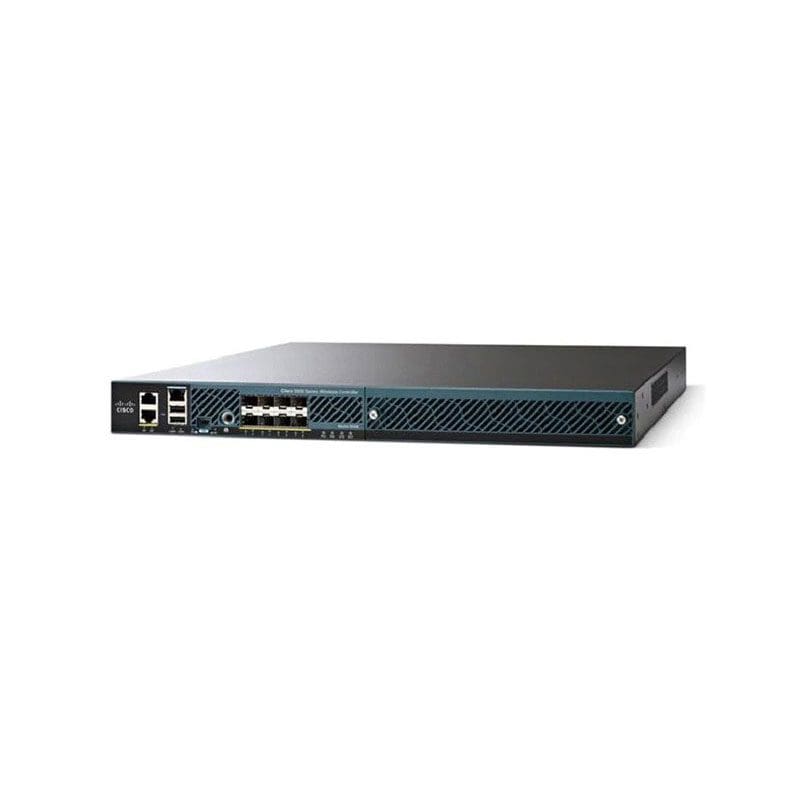

Refurbished AIR-CT5508-250-K9 Technical Specification
Cisco 5508 Wireless Controller
Networking
Form Factor External
Ports Qty 8
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Capacity Manageable access points: 250
Status Indicators Power, system, link/activity
Features DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, manageable, MAC address filtering, CleanAir technology
Encryption Algorithm LEAP, DES, Triple DES, RC4, MD5, AES, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS, SHA-1, TLS 1.0, 104-bit WEP, WPA, WPA2, WPA-PSK, AES-CBC
Authentication Method RADIUS, TACACS, Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 95% (non-condensing)
General
Device Type Network management device
Height (Rack Units) 1U
Width 17.3 in
Depth 21.2 in
Height 1.8 in
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot ¦ 8 (total) / 8 (free) x
Interfaces 1 x management – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB ¦ 2 x USB – Type A
Power
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 115 Watt
