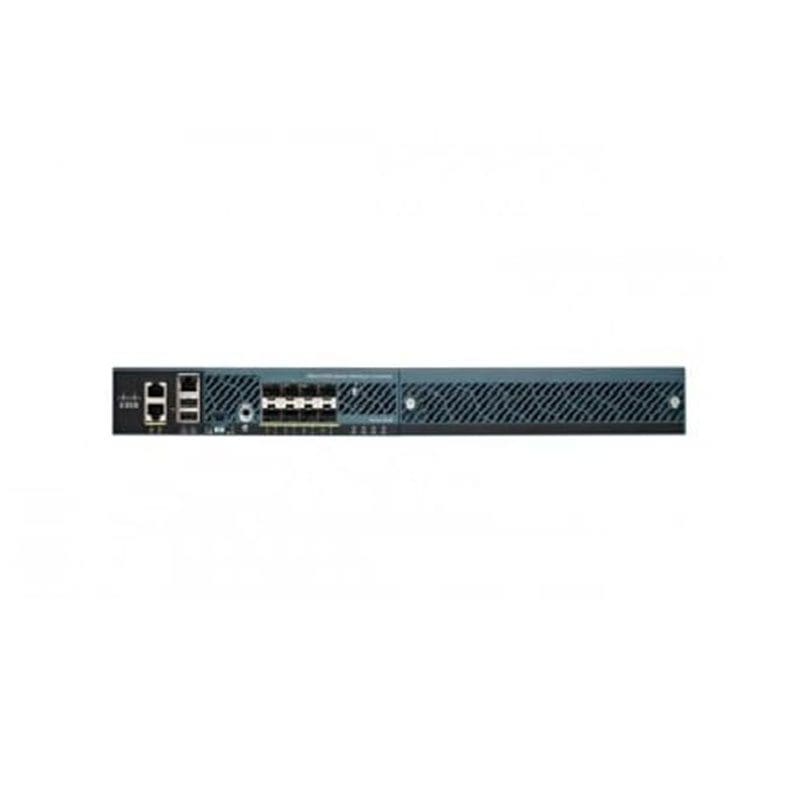

Refurbished AIR-CT5508-12-K9 Technical Specification
Cisco 5508 Wireless Controller
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :5508 Wireless Controller
Packaged Quantity :1
Optical Storage
Type :None
Networking
Type :Network management device
Form Factor :External
Ports Qty :8
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Switching Protocol :Ethernet
Network / Transport Protocol :ARP, BOOTP, DHCP, ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Status Indicators :Link/activity, Power, System
Features :ARP support, BOOTP support, CleanAir technology, DHCP support, MAC address filtering, Manageable, Syslog support, VLAN support
Compliant Standards :IEEE 802.11a, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x management – RJ-45, 1 x USB, 2 x USB – Type A, 8 x network
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :2
Power Provided :115 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Refurbished :Refurbished
License Qty :12 MAPs (managed access points)
Height (Rack Units) :1
Encryption Algorithm :104-bit WEP, 128-bit WEP, 40-bit WEP, AES, AES-CBC, DES, IKE, LEAP, MD5, RC4, SHA-1, SSL, TLS, TLS 1.0, Triple DES, WPA, WPA2, WPA-PSK
Authentication Method :Extensible Authentication Protocol (EAP), RADIUS, TACACS
Compliant Standards :EN 60950-1, EN55022, EN55024, FCC Part 15.107, FCC Part 15.109, ICES-003, UL 60950-1, VCCI
Dimensions & Weight
Width :17.3 inch
Depth :21.2 inch
Height :1.8 inch
