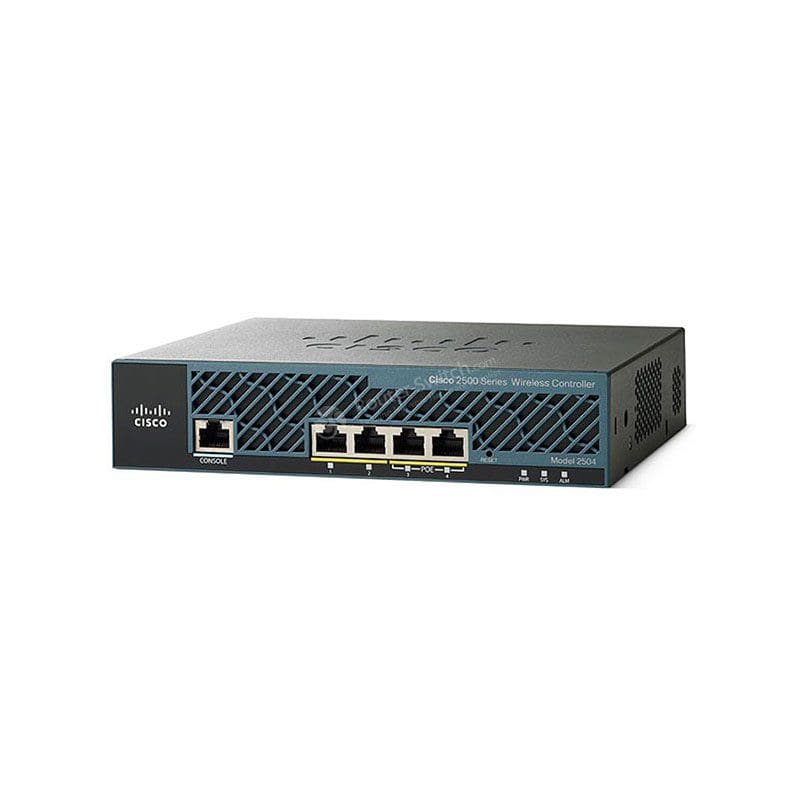

AIR-CT2504-15-K9 Technical Specification
Cisco 2504 Wireless LAN Controller
Networking
Form Factor: External
Ports Qty: 4
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol: Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
Status Indicators: Power, system, alarm, link/activity
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n
Environmental Parameters
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 95% (non-condensing)
General
Device Type: Network management device
Height (Rack Units): 1U
Width: 8 in
Depth: 10.7 in
Height: 1.7 in
