Refurbished AIR-CAP3702I-E-K9 Technical Specification

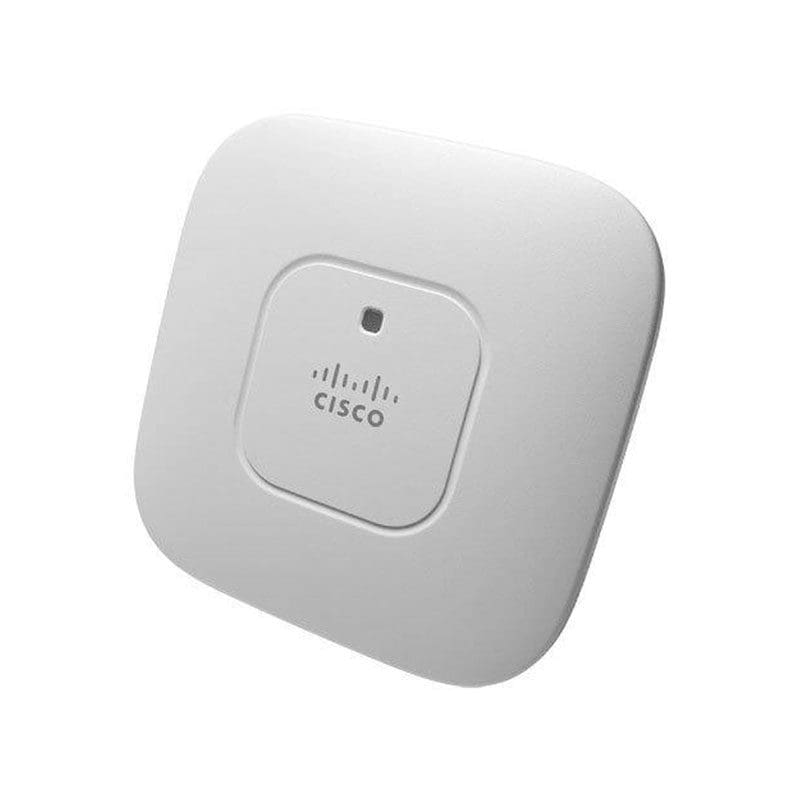

Cisco Aironet Wireless Access Point
General
Device Type Wireless access point
Ruggedized Design Indoor
Width 8.7 in
Depth 8.7 in
Height 2.1 in
Weight 2.49 lbs
Processor / Memory / Storage
RAM 512 MB
Flash Memory 64 MB
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 1.3 Gbps
Line Coding Format CCK
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status
Features Auto-sensing per device, Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), 4T4R MIMO technology, ClientLink 3.0 technology
Encryption Algorithm AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Antenna
Antenna Internal
Directivity Omni-directional
Expansion / Connectivity
Interfaces 1 x 1000Base-T – RJ-45 | 1 x management – RJ-45
Miscellaneous
Compliant Standards VCCI, ICES-003, FCC Part 15.247, OET 65 C, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EMI, EN 300 328, EN 301 489-1, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Power
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Country of Origin
Country of Origin CN
