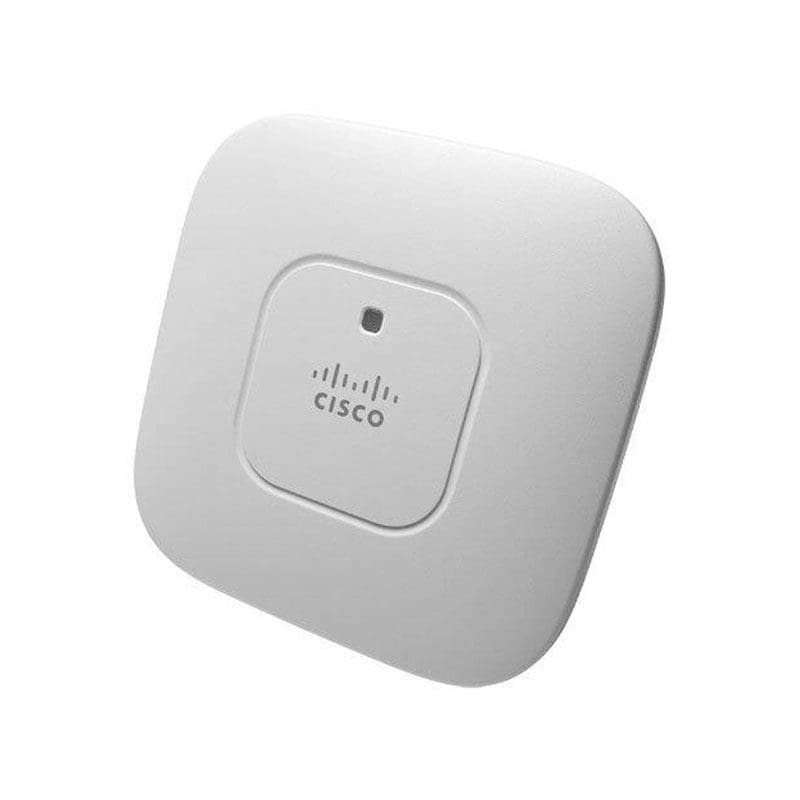

Refurbished AIR-CAP3602I-E-K9 Technical Specification
Cisco Aironet Wireless Access Point
General
Device Type Wireless access point
Width 8.7 in
Depth 8.7 in
Height 1.9 in
Weight 2.29 lbs
Processor / Memory / Storage
RAM 128 MB
Flash Memory 32 MB
Networking
Form Factor External
Connectivity Technology Wireless
Data Transfer Rate 450 Mbps
Line Coding Format CCK
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz, 5 GHz
Status Indicators Status
Features Auto-sensing per device, power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC)
Encryption Algorithm AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Authentication Method MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n
Antenna
Antenna Internal
Directivity Omni-directional
Expansion / Connectivity
Interfaces 1 x 1000Base-T – RJ-45 | 1 x management – RJ-45
Miscellaneous
Mounting Kit Included
Compliant Standards VCCI, ICES-003, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EN 300 328, EN 301 489-1, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17
Power
Power Over Ethernet (PoE) Supported PoE
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Country of Origin
Country of Origin CN
