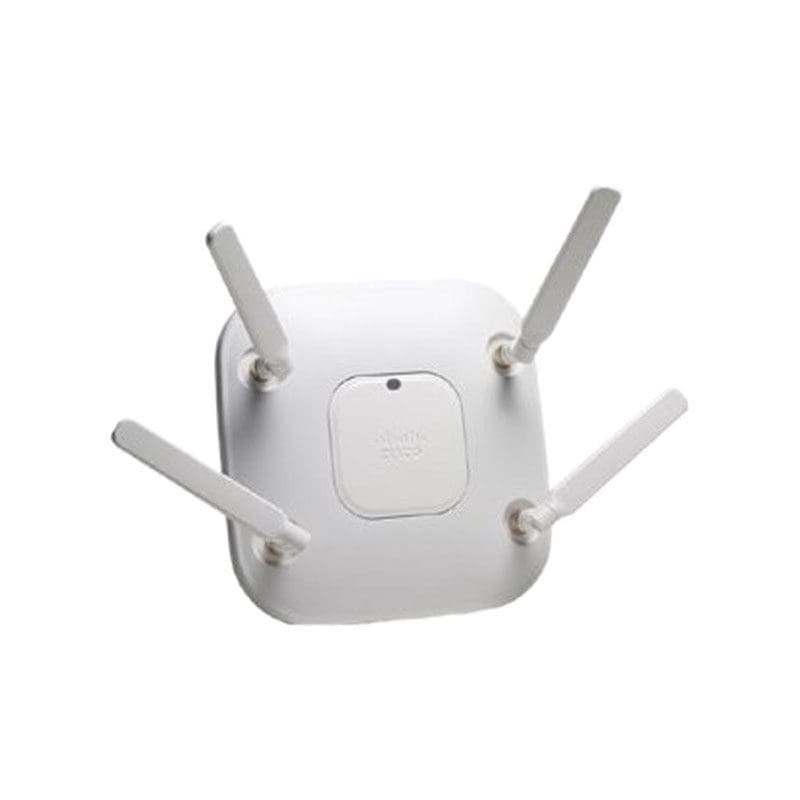

AIR-CAP3602E-B-K9 Technical Specification
Cisco Aironet Wireless Access Point
Networking
Form Factor: External
Connectivity Technology: Wireless
Data Transfer Rate: 450 Mbps
Line Coding Format: CCK
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band: 2.4 GHz, 5 GHz
Status Indicators Status
Encryption Algorithm AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
Environmental Parameters
Min Operating Temperature -4 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 – 90% (non-condensing)
General
Device Type Wireless access point
Width 8.7 in
Depth 8.7 in
Height 1.9 in
Weight 2.49 lbs
Processor / Memory / Storage
RAM 256 MB
Flash Memory 32 MB
Expansion / Connectivity
Interfaces 1 x 1000Base-T – RJ-45 ¦ 1 x management – RJ-45 ¦ 4 x antenna
Power
Power Over Ethernet (PoE) Supported PoE
Antenna
Antenna External detachable
Antenna Qty 4
