Refurbished AIR-AP3802I-A-K9C Technical Specifications

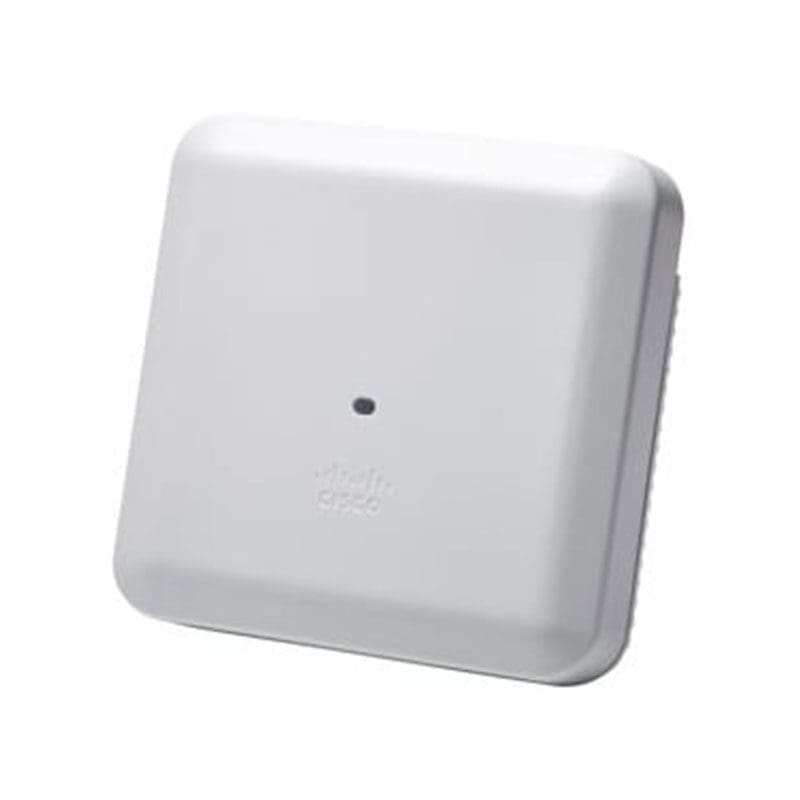

Cisco Aironet 3802i Access Point
Product Code
AIR-AP3802I-A-K9C
Antennas
Internal Antennas
Description
Dual-band, controller-based 802.11a/g/n/ac, configurable
Interfaces
– 2 Ethernet ports
– 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)
– CAT 5e cabling
– Higher-quality 10GBASE-T (CAT 6/6a) cabling
– 100/1000BASE-T autosensing (RJ-45 – AUX port)
– Management console port (RJ-45)
Features
– 4×4 MU-MIMO with three spatial streams
– MRC
– 802.11ac beamforming
– 20-, 40-, 80, 160-MHz channels
– PHY data rates up to 5.2 Gbps
– Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
– 802.11 DFS
– CSD support
Regulatory Domain
A (A regulatory domain):
– 2.412 to 2.462 GHz; 11 channels
– 5.180 to 5.320 GHz; 8 channels
– 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
– 5.745 to 5.825 GHz; 5 channels
System
– 1024 MB DRAM
– 256 MB flash
Dimensions (W x L x H)
8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm)
Net Weight
4.6 lb (2.09 kg)
