Refurbished AIR-AP3802E-C-K9 Technical Specifications

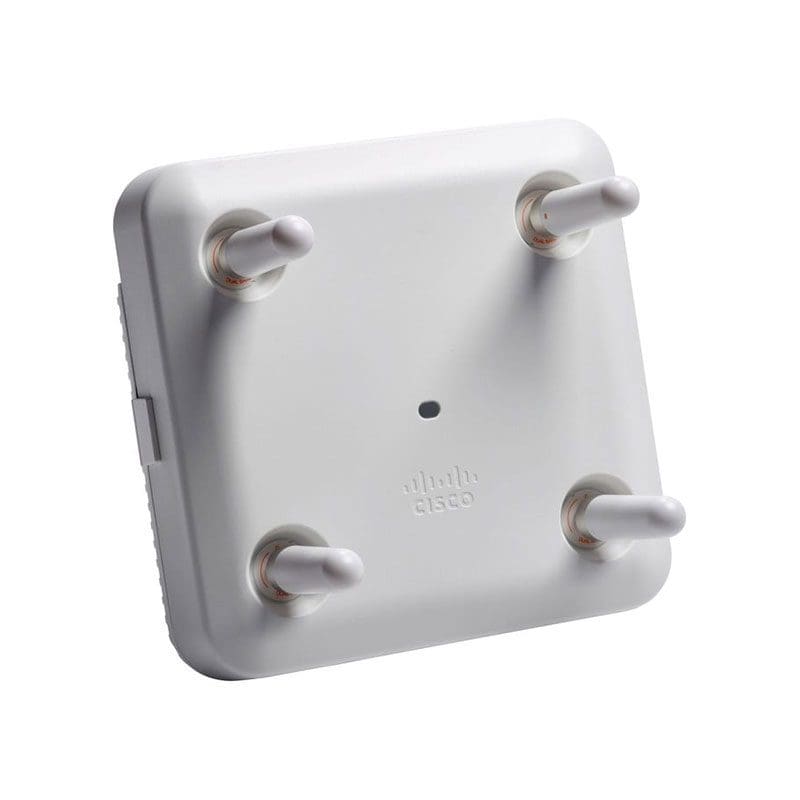

Cisco Aironet 3802E Access Point
Product Code
AIR-AP3802E-C-K9
Antennas
External Antennas
Permit Antenna Gains
Up to 6 dBi
Interfaces
– 2 Ethernet ports
– 100/1000/2500/5000 Multigigabit Ethernet (RJ-45)
– CAT 5e cabling
– Higher-quality 10GBASE-T (CAT 6/6a) cabling
– 100/1000BASE-T autosensing (RJ-45 – AUX port)
– Management console port (RJ-45)
Features
– 4×4 MU-MIMO with three spatial streams
– MRC
– 802.11ac beamforming
– 20-, 40-, 80, 160-MHz channels
– PHY data rates up to 5.2 Gbps
– Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
– 802.11 DFS
– CSD support
Regulatory Domain
C (C regulatory domain):
– 2.412 to 2.472 GHz; 13 channels
– 5.745 to 5.825 GHz; 5 channels
System
– 1024 MB DRAM
– 256 MB flash
Dimensions (W x L x H)
8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Net Weight
4.6 lb (2.09 kg)
