AIR-AP2802I-A-K9 Technical Specifications

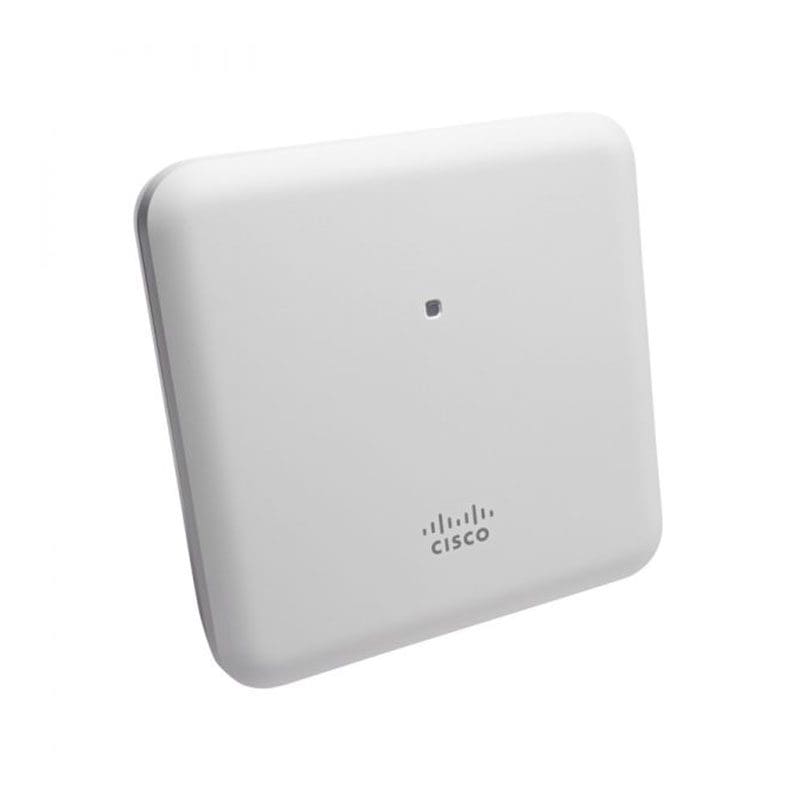

Cisco Aironet 2802i Access Point
Frequency band and 20-MHz operating channels
A (A regulatory domain):
2.412 to 2.462 GHz; 11 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz)
5.745 to 5.825 GHz; 5 channels
Antenna: Internal Antenna
Features
4×4 MU-MIMO with three spatial streams
MRC
802.11ac Beamforming
20-, 40-, 80, 160-MHz channels
PHY data rates up to 5.2 Gbps
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Interfaces
2 x 100/1000BASE-T autosensing (RJ-45)
Management console port (RJ-45)
USB 2.0 (enabled via future software)
System memory
1024 MB DRAM
256 MB flash
Dimensions (W x L x H)
8.66 x 8.68 x 2.17 in.
Net Weight
3.53 lb (1.6 kg)
