AIR-AP1810W-C-K9 Technical Specifications

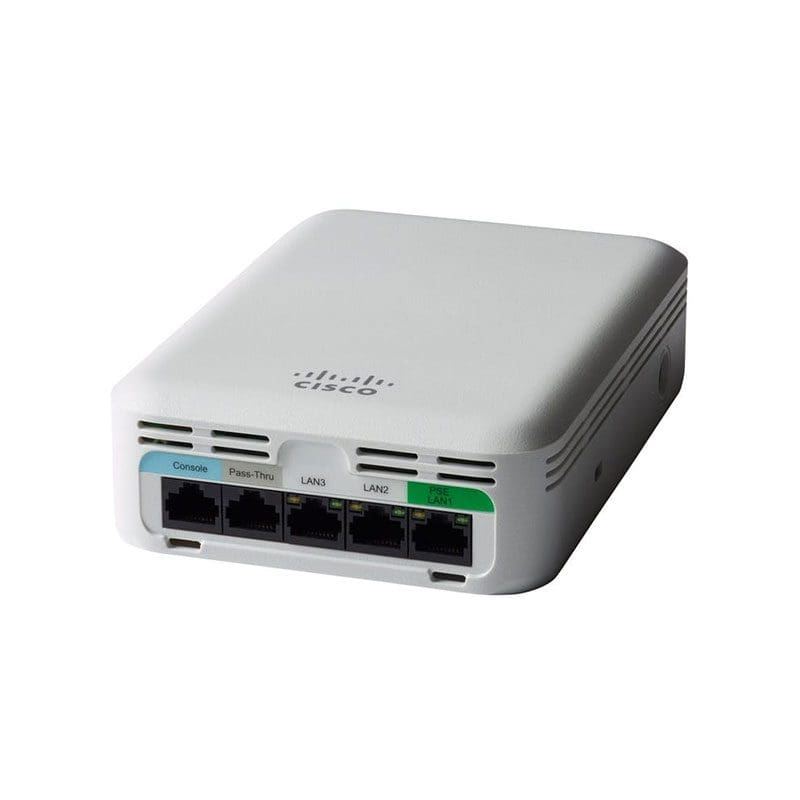

Cisco Aironet 1810W Access Point
Product Code
AIR-AP1810W-C-K9
Interfaces
1 × 10/100/1000BASE-T PoE uplink port
1 × Management console port (RJ-45)
1 × passive pass-through port RJ-45 (back to bottom)
1 × DC power connector
Dimensions
165 x 114 x 41 mm (Access point without mounting bracket))
Features
2×2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support
Weight
Regulatory Domain
C (C regulatory domain):
2.412 to 2.472 GHz; 13 channels
5.745 to 5.825 GHz; 5 channels
System
512 MB DRAM
256 MB flash
1.4 GHz system dual-core CPU
