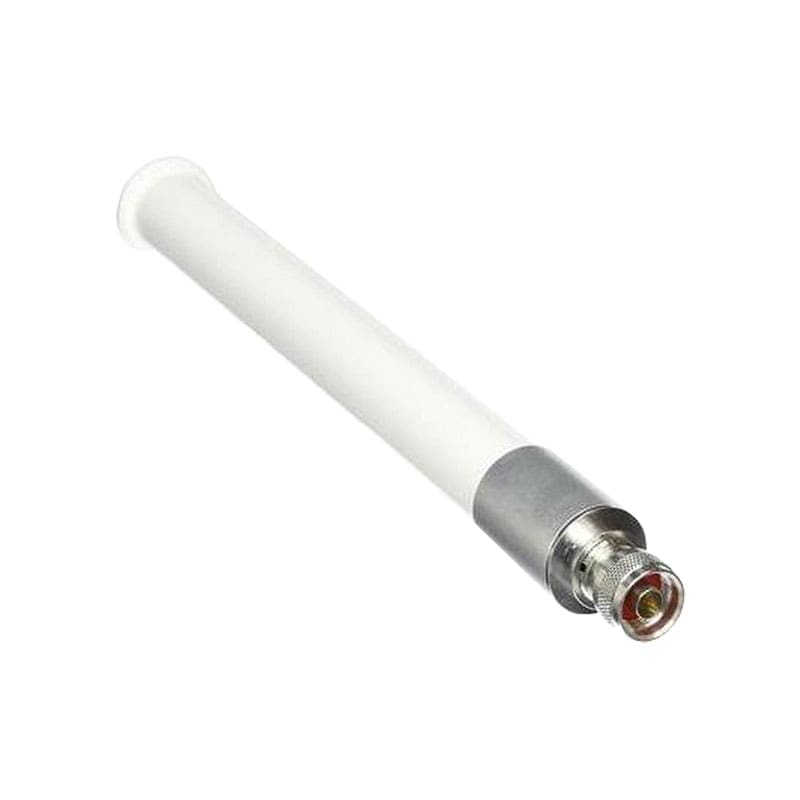

AIR-ANT2547VG-N= Technical Specifications
Cisco Aironet Dual-Band Omnidirectional Antenna
Brand: Cisco
Product Line: Cisco Aironet
Model: Dual-Band Omnidirectional Antenna
Manufacturer: Cisco Systems
Network & Communication
Impedance: 50 ohm
Connectivity
Connector Provided: 1 x N-Series connector male
Technical Information
Antenna Gain: 4 dBi (for 2.4 GHz), 7 dBi (for 5 GHz)
Antenna Placement: Outdoor
Directivity: Omni-directional
Frequency Range: 2.4 – 2.483 GHz, 5.15 – 5.875 GHz
Max Operating Temperature: 85 degree Celsius
Min Operating Temperature: -40 degree Celsius
Voltage Standing Wave Ratio (VSWR): 2.0:1
Product Information
Category of Accessory: Antennas
Packaged Quantity: 1
Service Activation: No
Stylus Type: Antenna
Dimensions & Weight
Height: 28.2 centimetre
Weight: 170 gram
Width: 3.17 centimetre
Depth: 3.17 centimetre
