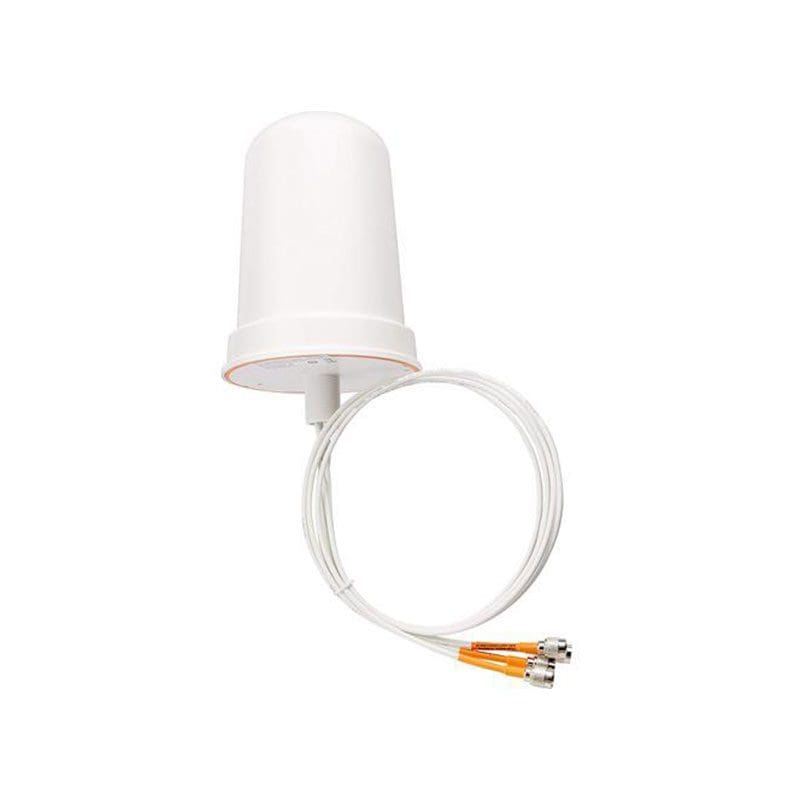

Refurbished AIR-ANT2544V4M-R Technical Specification
Cisco Aironet Dual-Band MIMO
Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco Aironet
Model :Dual-Band MIMO Wall-Mounted Omnidirectional Antenna
Packaged Quantity :1
General
Product Type :Antenna
Category of Accessory :Antennas
Antenna
Gain :4 dBi
Antenna Placing / Mounting :Indoor, Outdoor, Wall-mountable
Directivity :Omni-directional
Frequency Range :2.4 GHz, 5 GHz
Impedance :50 ohm
Voltage Standing Wave Ratio (VSWR) :2:1
Vertical Beamwidth :33° (at 5 Ghz), 60° (at 2.4 GHz)
Cable Length :36 inch
Interface Provided
Connector Provided :1 x RP-TNC
Miscellaneous
Color Category :White
Dimensions & Weight
Width :6.3 inch
Depth :6.3 inch
Height :8.6 inch
Weight :23.68 ounce
Environmental Parameters
Min Operating Temperature :-22 degree Fahrenheit
Max Operating Temperature :158 degree Fahrenheit
